RPCE-L-P+E+S-1-1200×800-B-P6+F9+IS2-VR1, VR2-LH50, AO-1P220
1.Richpeace new 3G computer control system,friendly HMI, flexible operation, large storage capacity, ensure highly precise running of the machine.

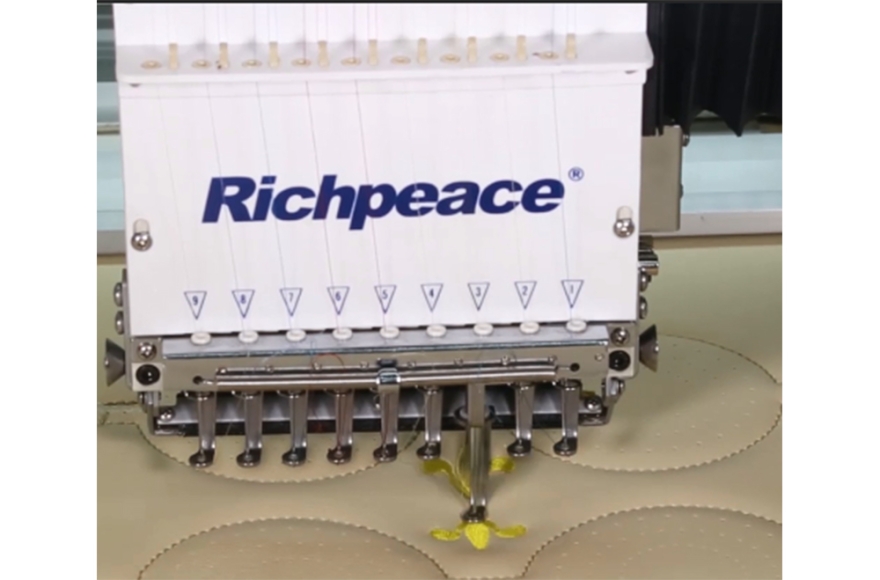

2. Six sizes round punching needle for perforation head: 0.8mm,1.0mm,1.2mm,1.5mm, 2.0mm, 2.5mm, different sizes combination realize various pattern.
3. Servo motor driving for main shaft and frame driving, independent control.
4. Richpeace self-developed electrical and mechanics technology can meet customization requirements.
5. Bridge structure, stable frame, big sewing area, realizing any pattern design.
6. Equipped with automatic vacuum cleaner to remove the leather crumbs.
7. Automatic lubricating system, improves equipment service life and reduces manual maintenance.
8. 2X size of sewing rotary hook and 1X embroidery rotary hook, all are original from Japan.
9. Lifting sewing head could prevent frame collision and thread off.
10. Specialized multi-functional frame could satisfy different leather and synthetic leather processing.
11. Optional Richpeace PerSew CAD system, free design in sewing pattern and easy to realize the complicated and special processing integrated with embroidery, sewing, perforation together.
Model | RPCE-L-P+E+S-1-1200×800-B-P6+F9+IS2-VR1, VR2-LH50, AO-1P220 |
Size | 900mm×600mm 1200mm×800mm |
Speed | 1000rpm |
Power Supply | One phase 220V/50Hz |
Power | 5.5kW/0.6Mpa |
Installation Area | 4193mm×2100mm×1650mm 4793mm×2500mm×1650mm |
