TIANJIN RICHPEACE AI CO., LIMITED

Richpeace Leather Lamination Machine

    RPAS-NM-C-1-900×600-B-HM-0-AL-1P220

  • Power15kW
  • Voltage3 phase 380V/50Hz

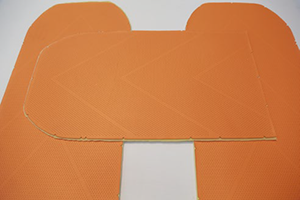

Car seat leather sponge, genuine leather fabric etchot-melt laminating processes.
Product Video
Product Introduction

1. High-power heating plate can ensure stable heating temperature.

2. One-button frame feeding, automatic frame pressing, reducing labors and ensuring compound accuracy.

3. Equipped with the leather lamination machine control system independently developed by Richpeace.

4. The top layer adopts a heating plate to ensure heating evenly; the bottom layer adopts a high-density elastic material support plate to ensure even pressure, higher bonding strength and better compounding effect.


Richpeace Leather Lamination MachineRichpeace Leather Lamination Machine


5. 10-inch HD one-touch control panel, easy and fast to operate.

6. The top and bottom heating plates adopt hydraulic system to ensure stable compound pressure.

7. Suitable for all kinds of net film hot-melt adhesive compounding, no colloid overflow, no dirt adhesion, and ensuring the product smooth and beautiful.

8. Equipped with safety protection light curtain, preventing human body from damage caused by the heating plate during operation.


Type of laminatingHot meltMaterial Width950mm (can be customized)
Type of clamp framePneumaticAir Pressure0.6MP
Heating time10S (adjustable)Voltage3 phase 380V/50Hz
Max. efficiency25 s/pc.Power15kW


Product Parameters
Model

RPAS-NM-C-1-900×600-B-HM-0-AL-1P220

Power Supply 3 phase 380V/50Hz
Power 15kW
