TIANJIN RICHPEACE AI CO., LIMITED

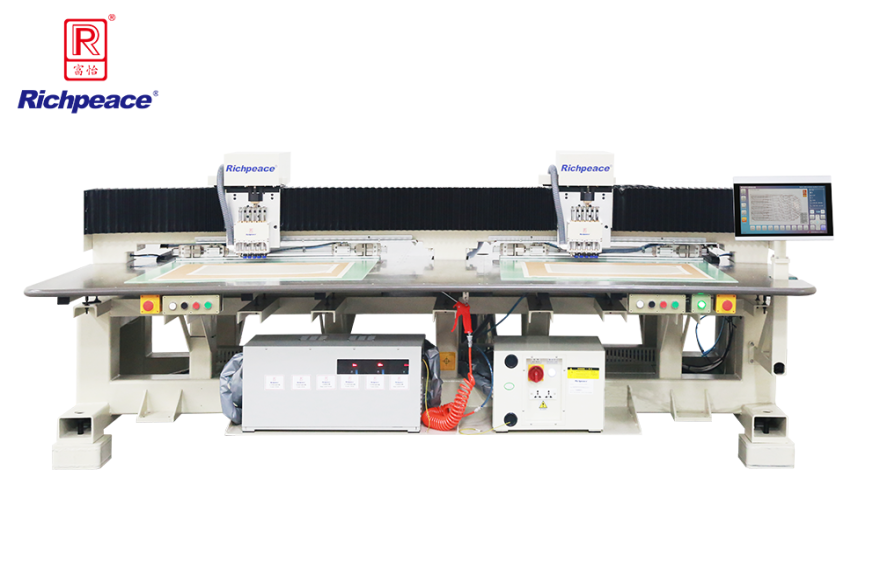

Automatic Double-Head Plate Mount Perforation Machine (6-size Heavy Mechanism)

    RPCE-L-P-1-900×600-B-P6-0-NA-1P220

    RPCE-L-P-2-900×600-B-P6-0-NA-1P220

    RPCE-L-P-4-900×600-B-P6-0-NA-1P220

    RPCE-L-P-1-1200×800-B-P6-0-NA-1P220

    RPCE-L-P-2-1200×800-B-P6-0-NA-1P220


  • Speed≤1200 holes/minute
  • VoltageSingle Phase 220V/Three Phase 380V
It is suitable for punching processing of various types and thicknesses of leather and microfiber leather such as car seats and aviation seats.
Product Video
Product Introduction

1. Richpeace Model Ⅲ computer control system, friendly HMI, flexible operation, large storage capacity, ensure highly precise running of the machine.

2. X & Y movement with lead screw direct drive, high accuracy perforation.

3. Scraps suctioned from Hollowed punching needle bar on each head, no scraps drop and clean work environment.

4. 6 specs. of punchers equipped on each head, backdischarging, cost-effective, suit for mass production.

5. Scraps suctioned from Hollowed punching needle bar on each head, no scraps drop and clean work environment.

6. Maximum punching speed up to 1200 holes/min.

7. Possible to have single head, double heads for choices, multiple heads working in same time, multiplied the efficiency.

8. Equipped with industrial vacuum cleaner, good performance on dust cleaning result.

9. Plate mount type fixture, lower tooling costs, easy to operate.

10. Optional Richpeace Intelligent SewPer CAD software, seamlessly matching with Richpeace perforation machine.

11. Optional barcode scanning function for pattern, call up related pattern with reading barcode, improve productivity and accuracy.

Product Parameters
Model

RPCE-L-P-1-900×600-B-P6-0-NA-1P220

RPCE-L-P-2-900×600-B-P6-0-NA-1P220

RPCE-L-P-4-900×600-B-P6-0-NA-1P220

RPCE-L-P-1-1200×800-B-P6-0-NA-1P220

RPCE-L-P-2-1200×800-B-P6-0-NA-1P220


Size

900mm×600mm

900mm×600mm

900mm×600mm

1200mm×800mm

1200mm×800mm

Speed ≤1200 holes/minute
Power Supply Single Phase 220V/Three Phase 380V
Installation Area

1600mm×1880mm×1270mm

3100mm×1880mm×1270mm

6100mm×1880mm×1270mm

2300mm×2280mm×1270mm

3800mm×2280mm×1270mm
