RPCE-L-SP-1-900×600-B-SP4-0-NA-3P380
RPCE-L-SP-2-900×600-B-SP4-0-NA-3P380
1. Richpeace Model Ⅲ computer control system, friendly HMI, flexible operation, large storage capacity, ensure highly precise running of the machine.
2. X & Y movement with lead screw direct drive, high accuracy perforation.
3. Hollow-type 360° rotary punching needle bar, heavy punching mechanism, stronger powerful force.
4. 4 specs of punching tools equipped on each head, shapes and sizes can be customized as per requirement; all the 4 punchers can rotate at any angle according to the preset patterns.
5. Maximum punching speed up to 1200 holes/min.
6. Optional Single-head, Double-head, Multiple heads, Multipied the efficiency.
7. Equipped with industrial vacuum cleaner, good performance on dust cleaning result.
8. Plate mount type fixture, lower tooling costs, easy to operate.
9. Optional Richpeace Intelligent SewPer CAD software, seamlessly matching with Richpeace perforation machine.
10. Optional barcode scanning function for pattern, call up related pattern with reading barcode, improve productivity and accuracy.
11. Standard with automatic lubrication system, to solve the trouble of manual maintenance when unreachable and optimize the service lifetime of screw rod & guide rail slider.

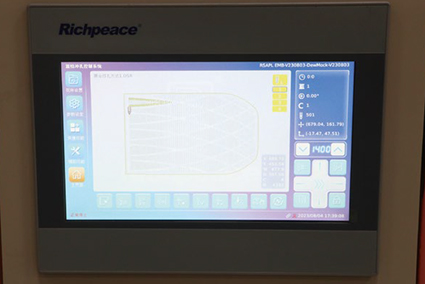

Richpeace Model III control system
Heavy-mechanism punching,4-tools
Industrial Vacuum Cleaner
Optional
Integrated leather aluminum frame
| Model | RPCE-L-SP-1-900×600-B-SP4-0-NA-3P380 RPCE-L-SP-2-900×600-B-SP4-0-NA-3P380 |
| Size | 900mm×600mm 900mm×600mm |
| Speed | ≤1200holes/minute |
| Power | 3-4kW |
| Installation Area | 2130mm×1730mm×1700mm 3560mm×1730mm×1700mm |
