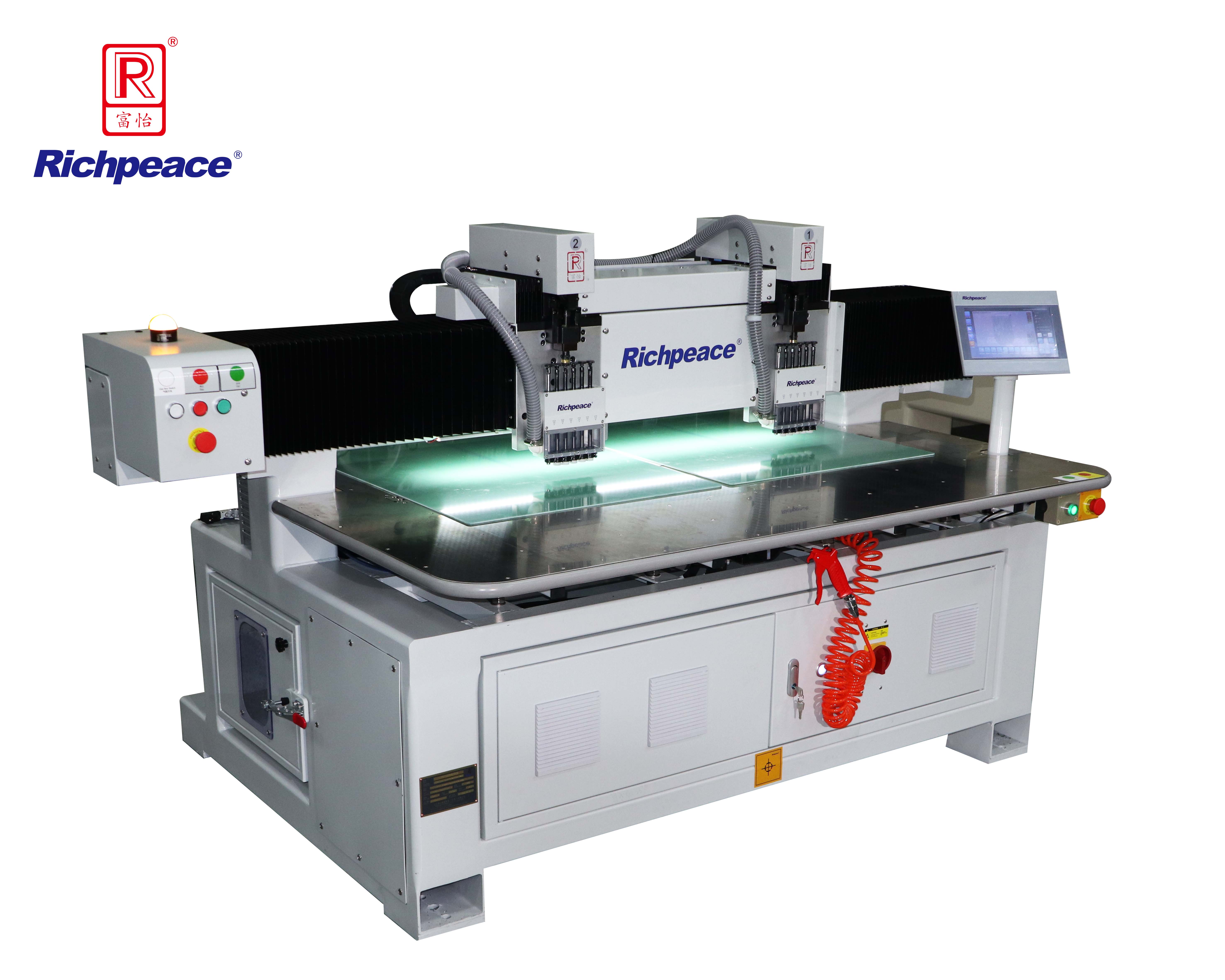

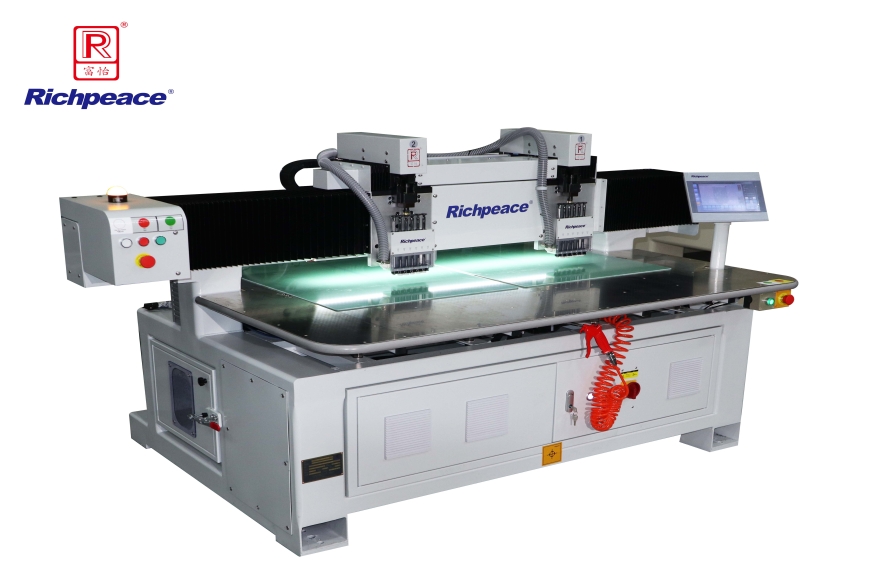

Richpeace Automatic High-speed Plate Mount Perforation Machine

    RPCE-L-P-1-900×600-B-P6-0-NA-3P380

    RPCE-L-P-2-900×600-B-P6-0-NA-3P380

  • Speed≤1700 holes/minute
  • Power3-4kW
  • Voltage3-phase 380V

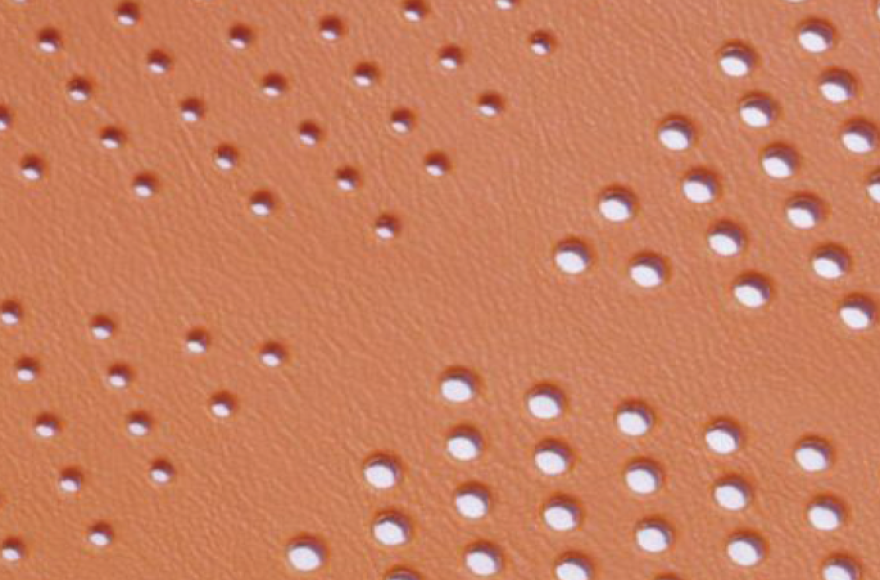

Itis suitable for punching processing of various types and thickness of leather and microfiberleather such as car seats and aviation seats.
Product Video
Product Introduction

1. Richpeace Model Ⅲ computer control system, friendlyHMI, flexible operation, large storage capacity, ensurehighly precise running ofthe machine.

2. X & Y movement with lead screw direct drive, highaccuracy perforation.

3. Scraps suctioned from Hollowed punching needle baron each head, no scraps drop and clean workenvironment.

4. Maximum punching speed up to 1700 holes/min.

5. Possible to have single head, double heads for choices,multiple heads working in same time, multiplied theefficiency.

6. Equipped with industrial vacuum cleaner, goodperformance on dust cleaning result.

7. Plate mounttype fixture, lowertooling costs, easy tooperate.

8. Optional Richpeace Intelligent SewPer CAD software,seamlessly matching with Richpeace perforationmachine.

9. Optional barcode scanning function for pattern, callup related pattern with reading barcode, improveproductivity and accuracy.

10. Standard with automatic lubrication system,to solvethe trouble of manual maintenance is notreachableand optimize the service lifetime of screw rod & guiderail slider.

Product Parameters
Model

RPCE-L-P-1-900×600-B-P6-0-NA-3P380

RPCE-L-P-2-900×600-B-P6-0-NA-3P380

Size

900mm×600mm

900mm×600mm

Speed ≤1700 holes/minute
Power Supply 3-phase 380V
Power 3-4kW
Installation Area

1800mm×1880mm×1270mm

3400mm×1880mm×1270mm
