RPLC-NM-N-1-1300X900-C-SL-CGC80W-ZIH-1P220V
1. High precision of equipment, The error is less than 0.01mm.
2. Special laser tube chiller can ensure good carving effect and ex- tend the working life of laser tube.
3. Engraving software can be directly connected with Auto CAD, CorelDraw, AI. Clothing CAD and other software seamlessly to achieve the original image output.
4. Advanced color management, support multiple color output at one time.
5. 128M large capacity memory can store multiple job data, and supports USB hot plug and write.
6. Support graphic formats: BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, AI, DXF, DST.
7. Laser cutting machine double head mutual movement model can realize the full use of materials, reduce the waste of materials, the space between the two cutting head can automatically adjust the space according to the size of the cutting graph, flexible multi- face, can also be manually assigned work area.

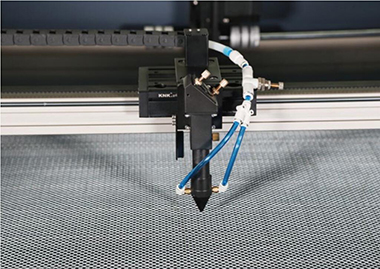

① Double blowpipe setting can disperse the smoke in laser head more quickly, protect optical components to a greater extent, and extend the service life of laser head.
② It has the function of over temperature alarm, flow protection, water level protection and other safety alarm to ensure the normal operation of the equipment under high temperature and humidity.
③ The upper and lower smoke exhaust fans can work together to rapidly exhaust smoke.
④ The built-in hopper can quickly collect cutting waste and facilitate subsequent machine cleaning.

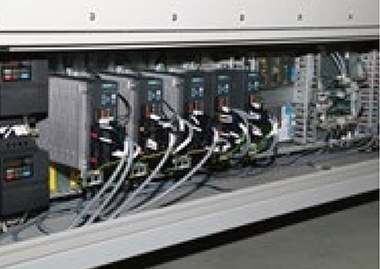

⑤ Famous brand components, stable output, long service life, can cooperate with the control system to operate the machine.

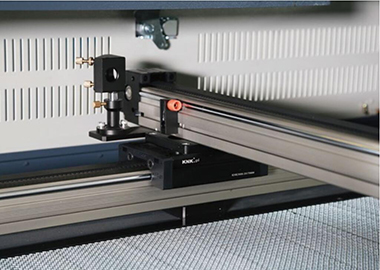

⑥ Guide module, easy to assemble, easy to maintain and dust. Longer service life; Stable operation, faster speed, high positioning accuracy.
Model | RPLC-NM-N-1-1300X900-C-SL-CGC80W-ZIH-1P220V |
Size | 600*400 900*600 1200*600 1400*800 1300*900 1500*900 1600*1000 1900*1000 |
Power Supply | AC220V/110V±10%,50H |
Power | Domestic glass laser tube 60w/80w/100w/130w/150w Enhanced 80w/100w/130w/150w |
