Richpeace Car-Interior Flatbed Scanning Digitizer

    RPFP-NM-DI-1-1000×1200-SGSF-NA-1P220

    RPFP-NM-DI-1-1500×1200-SGSF-NA-1P220

    RPFP-NM-DI-1-2000×1200-SGSF-NA-1P220

    RPFP-NM-DI-1-1500×1600-SGSF-NA-1P220

    RPFP-NM-DI-1-2000×1600-SGSF-NA-1P220

    RPFP-NM-DI-1-2500×1600-SGSF-NA-1P220

  • SpeedMax. 7200mm/min.
  • VoltageSingle phase AC220V±10% 50/60Hz

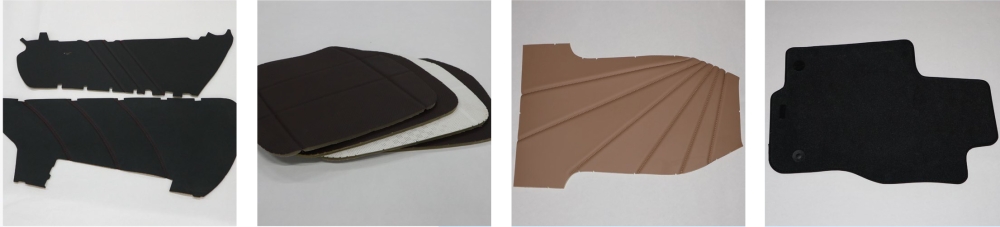

Digital input of various paper patterns and physical samples, for car seat, door armrests, foot pads,cushion, etc.
Product Video
Product Introduction

1. Adopt linear scanning mode, no need extra light compensation, all-weather reliable use.

2. Support one-button automatic scanning, simple and easy to operate.

3. Support ultra-long format scanning according to different models. Scanning speed up to 7200mm/minute.

4. Scanning resolution 150-300DPI, high definition panoramic 1:1 image to ensure effective identification of various contours/notches/inner holes.

5. According to physical samples, scanning height can be set by the touch screen to adapt different thickness material.

6. Background color can be switched quickly for different colors sample, which is flexible to response different material.

7. Output general DXF file format, compatible with most of CAD software in the market.

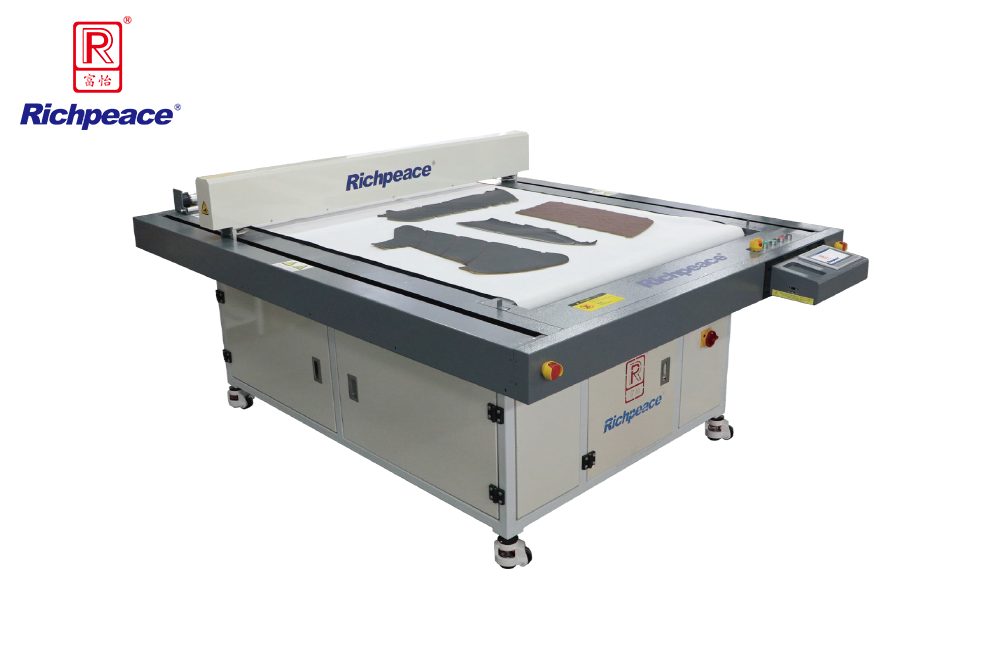

Richpeace Car-Interior Flatbed Scanning DigitizerRichpeace Car-Interior Flatbed Scanning Digitizer

Richpeace Car-Interior Flatbed Scanning DigitizerRichpeace Car-Interior Flatbed Scanning Digitizer

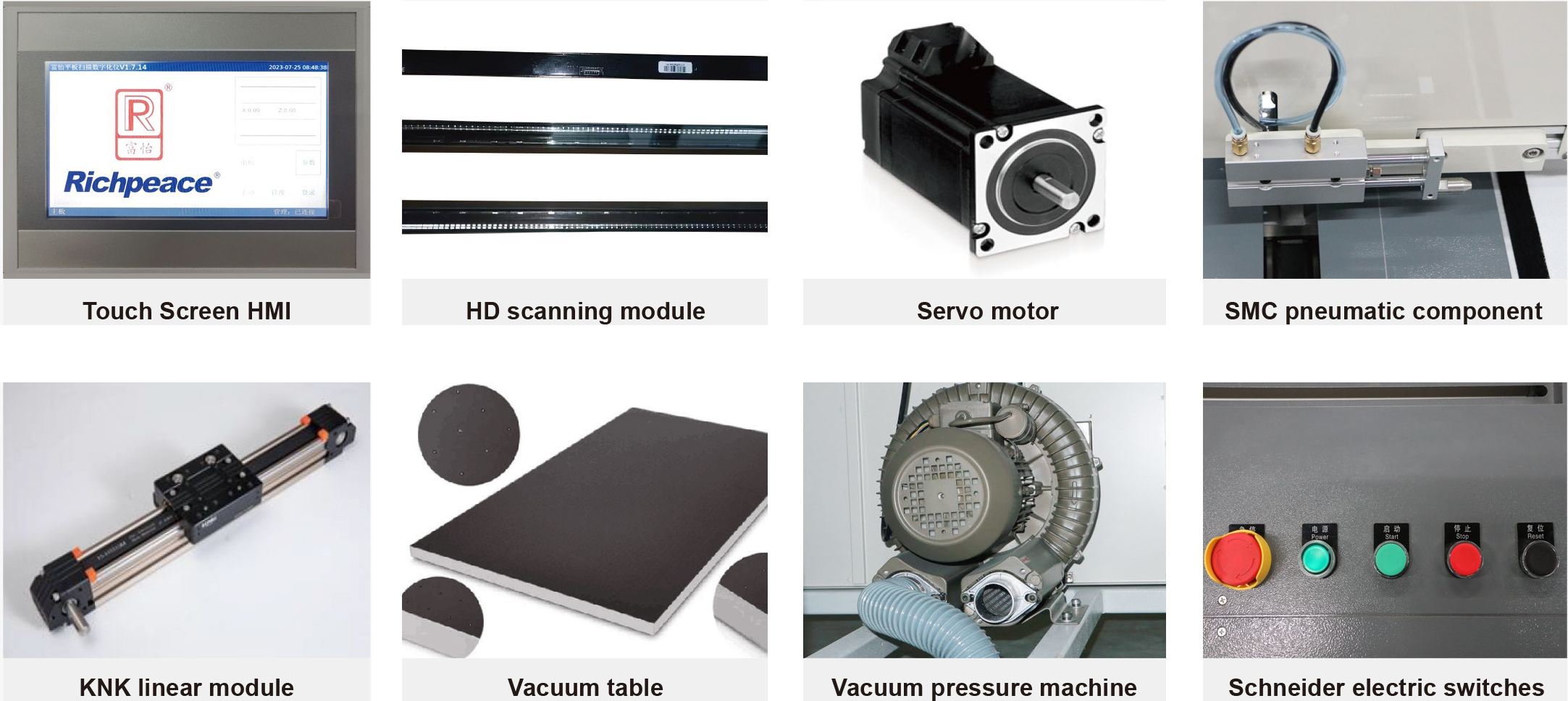

Machine configuration

Touch Screen HMI

Richpeace Car-Interior Flatbed Scanning Digitizer

HD scanning module

Richpeace Car-Interior Flatbed Scanning Digitizer

Servo motor

Richpeace Car-Interior Flatbed Scanning Digitizer

SMC pneumatic component

Richpeace Car-Interior Flatbed Scanning Digitizer

KNK linear module

Richpeace Car-Interior Flatbed Scanning Digitizer

Vacuum table

Richpeace Car-Interior Flatbed Scanning Digitizer

Vacuum pressure machine

Richpeace Car-Interior Flatbed Scanning Digitizer

Schneider electric switches

Richpeace Car-Interior Flatbed Scanning Digitizer


Product Parameters
Model

RPFP-NM-DI-1-1000×1200-SGSF-NA-1P220

RPFP-NM-DI-1-1500×1200-SGSF-NA-1P220

RPFP-NM-DI-1-2000×1200-SGSF-NA-1P220

RPFP-NM-DI-1-1500×1600-SGSF-NA-1P220

RPFP-NM-DI-1-2000×1600-SGSF-NA-1P220

RPFP-NM-DI-1-2500×1600-SGSF-NA-1P220

Size

1000×1200

1500×1200

2000×1200

1500×1600

2000×1600

2500×1600

Speed Max. 7200mm/min.
Power Supply Single phase AC220V±10% 50/60Hz
Installation Area

2300mm×1750mm×1300mm

2800mm×1750mm×1300mm

3300mm×1750mm×1300mm

2800mm×2150mm×1300mm

3300mm×2150mm×1300mm

3800mm×2150mm×1300mm
