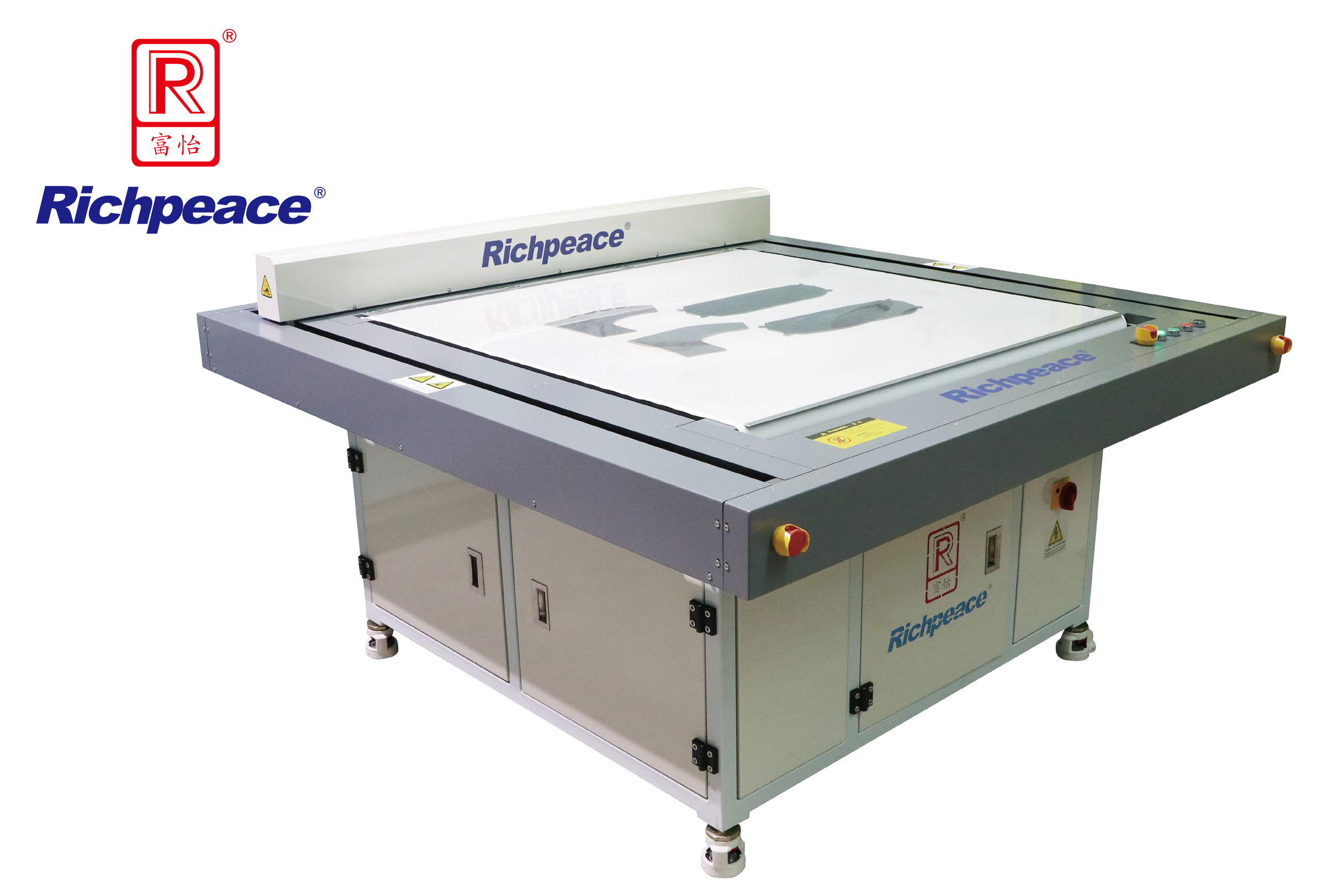

RPFP-NM-DI-1-1000×1200-SGSF-NA-1P220-S
RPFP-NM-DI-1-1500×1200-SGSF-NA-1P220-S
RPFP-NM-DI-1-2000×1200-SGSF-NA-1P220-S
1. Adopt line scanning mode, no need extra light compensation, all-weather reliable use.
2. One button to start after placing scanning pieces, can automatically film attaching-vacuum adsorption-auto scanning-auto transmission-auto film withdrawal.
3. According to different models, support ultra-long width scanning. Scanning speed up to 7200mm/minute.
4. Scanning resolution 150-300DPI, high definition panoramic 1:1 image to ensure effective identification of various contours/notches/inner holes.
5. According to the actual sample, the scanning height can be set through the touching screen, to adapt the different thickness of the material.
6. According to the color of scanning pieces, background color can be quickly switched, flexibly respond to different materials.
7. Output general DXF file format, compatible with most of CAD software in the market.
| Model | RPFP-NM-DI-1-1000×1200-SGSF-NA-1P220-S RPFP-NM-DI-1-1500×1200-SGSF-NA-1P220-S RPFP-NM-DI-1-2000×1200-SGSF-NA-1P220-S |
| Size | 1000mm×1200mm 1500mm×1200mm 2000mm×1200mm |
| Speed | Max. 7200mm/min. |
| Power Supply | Single phase AC220V±10% 50/60Hz |
| Power | 2kW |
| Installation Area | 2300mm×1750mm×1300mm 2800mm×1750mm×1300mm 3300mm×1750mm×1300mm |
