1. It has the advantages of simple operation, no sticking of shuttle core, no damage to shuttle core, no easy thread breakage
2. low cost, high efficiency and stability
3. It is an ideal matching product for quilting embroidery machine

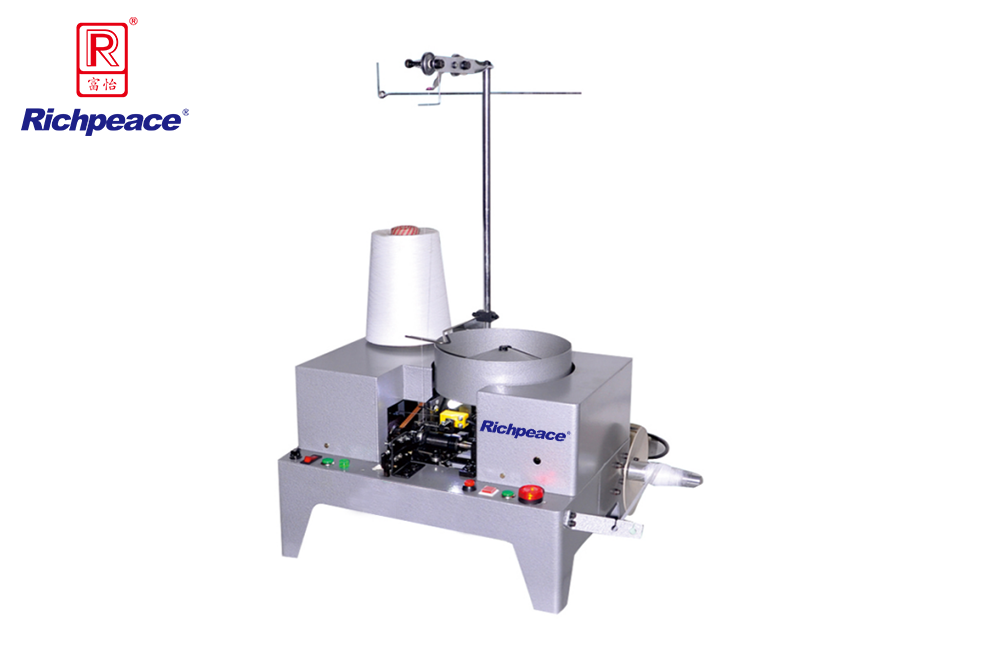

4. RP-5B/TX is based on GOA-5B and has the function of pulling out the remaining bottom line in the spindle core.
Bobbin Specifications | Bobbin Plane Diameter | Bobbin Height | Inner Hole Diameter |
1.0倍 | 20-21MM | 9-9.2MM | 6MM |
1.6倍 | 23MM | 9-10.5MM | 6MM |
2.0倍 | 25MM | 10.5MM | 6MM |
Modle | RP-5B/TX | Speed | 2800转/分 |
Voltage | AC220V 50HZ | Power | 约40W |
Net Weight | 19.5KG/21KG | Machine Size | 475*370* 355mm (LWH) |
| Model | RP-5B/TX |
| Speed | 2800转/分 |
| Power | 40w |
