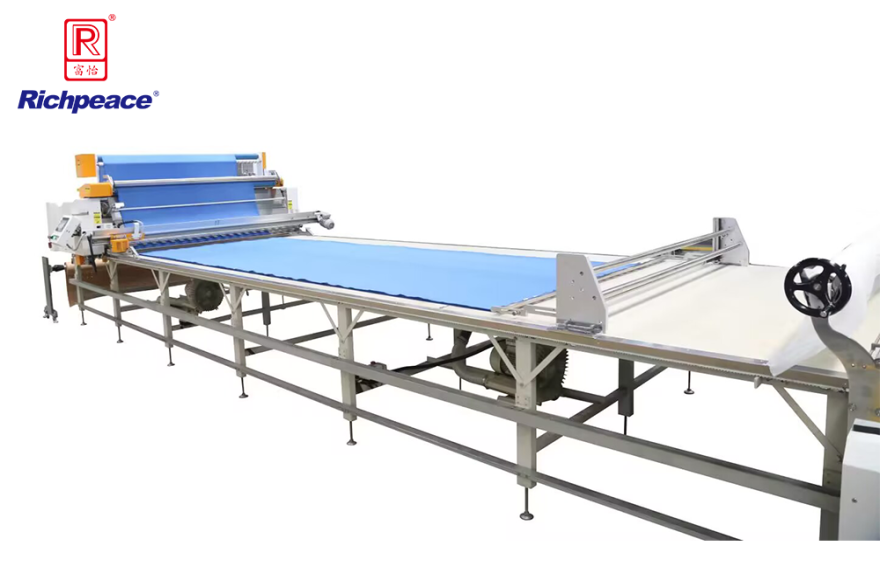

Richpeace Automatic Spreading Machine

    RPSM-NM-1-1000×1600-C-KW100-NA-1P220

    RPSM-NM-1-1000×1800-C-KW100-NA-1P220

    RPSM-NM-1-1000×2000-C-KW100-NA-1P220

    RPSM-NM-1-1000×2200-C-KW100-NA-1P220

    Other Size can be customized.

  • Speed≤100m/min
  • Power3-4kW
  • VoltageSingle Phase 220V±10%, 50Hz
Clothing, furniture, automotive interiors, outdoor tents, sleeping bags,toys, luggage, medical non-woven fabrics, etc. All kinds of knitted,woven, denim and leather fabrics.
Product Video
Product Introduction

1. Digital LCD touch screen, free to set the fabric length, layers, moving speed, and spreading method.

2. The intelligent cutting device adopts a high speed and large torque motor, suitable for cutting various fabrics.

3. Cutting bracket would be lifted automatically as per layers increasing.

4. Material shortage detection: automatically detect the spreading origin after starting up, and automatically return to the origin when no material.

5. When power interrupted, spreading set information can be stored after power reconnected, and find the origin to continue fabric spreading.

6. Automatic edge alignment and layers counting.

7. High sensitive senor to detect human being or obstacles barrier within 0.5 meter, to protect the operator and machine and ensure fabric edges aligned uniformly.

8. Equipped remote control can control machine stop and fabric feeding & collecting within 30 meters.

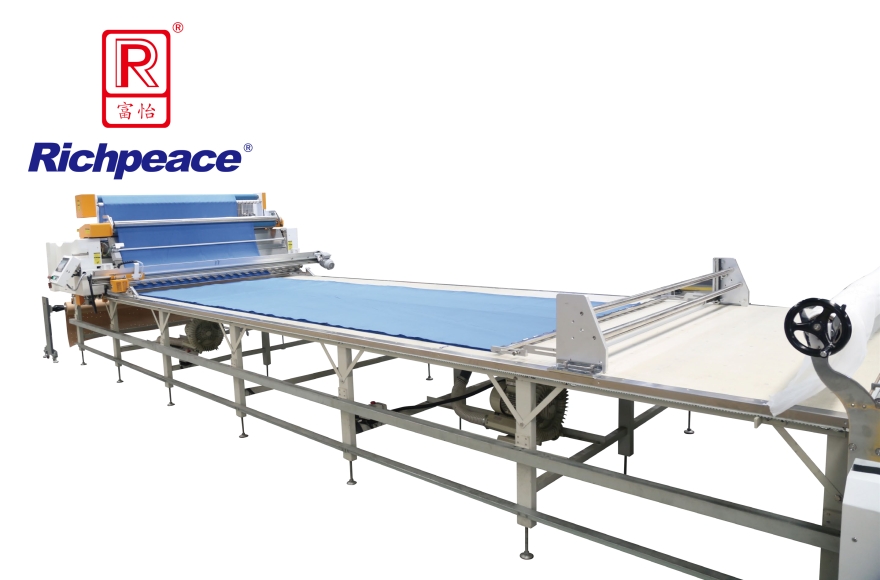

Richpeace Automatic Spreading MachineRichpeace Automatic Spreading Machine


Main Configuration

Intelligent Cutting Device

Intelligent adjustable cutting system, knife can be loaded and unloaded simply. The self-sharpening function could improve the cutting performance.

001

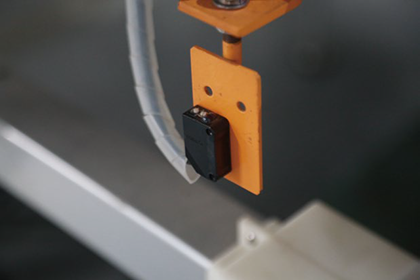

Automatic Edge Alignment Sensor

International famous brand infrared diffuse reflection technology for the fabric edge alignment sensor, improved alignment quality.

002


Distance Measurement Encoder

To detect machine traveling distance, and ensuring same distances every time.

003

High Sensitivity Sensor

After installation, once someone enters within 0.5m of the machine, the machine will automatically stop and ensure safety.

004

Product Parameters
Model

RPSM-NM-1-1000×1600-C-KW100-NA-1P220

RPSM-NM-1-1000×1800-C-KW100-NA-1P220

RPSM-NM-1-1000×2000-C-KW100-NA-1P220

RPSM-NM-1-1000×2200-C-KW100-NA-1P220

Other Size can be customized.

Speed ≤100m/min
Power Supply Single Phase 220V±10%, 50Hz
Power 3-4kW
