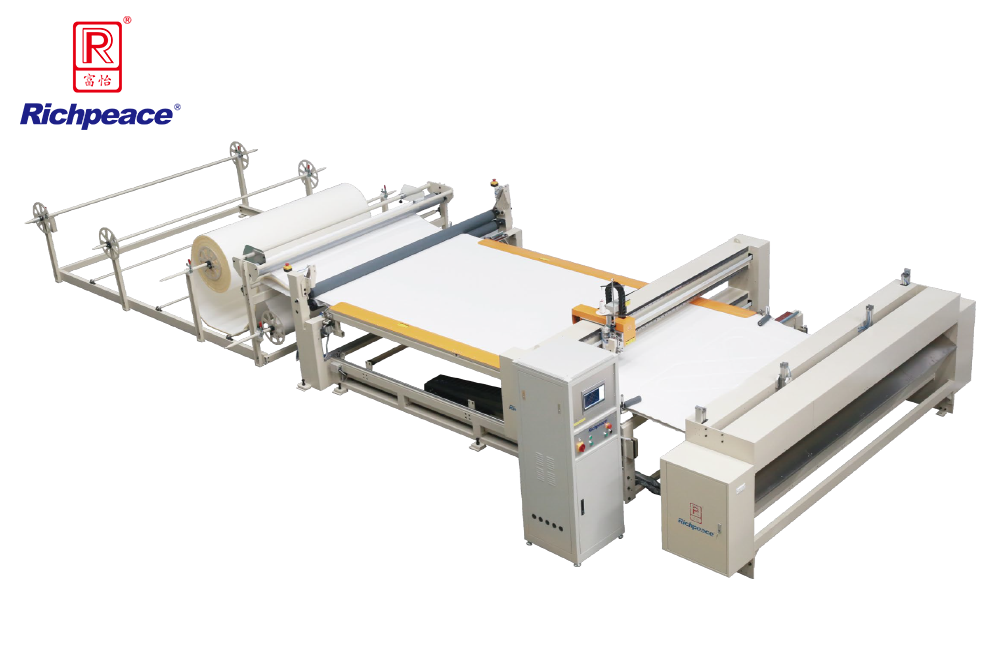

Richpeace Continuous Feeding Quilting Machine

    RPQP-NM-CSF-2300×2500-SDM-LS50-VR2-SL-3P380

    RPQP-NM-CSF-2600×2800-SDM-LS50-VR2-SL-3P380

    RPQP-NM-CSF-3200×3200-SDM-LS50-VR2-SL-3P380

  • Speed3000rpm
  • Power4.0KW
  • Voltage380V, 50Hz
Suitable for the single needle quilting patterns of mattress, quilt,blanket, mattress protector, bed cover, etc.
Product Video
Product Introduction

1. Richpeace brand-new model Ⅲ computer control system, friendly HMI, flexible touch control, large storage capacity, ensure high precision operation of complete machine.

2. Machine adopts LS50 lifting head, max. speed can reach 3000 rpm.

3. Powerful and professional computerized quilting functions, such as stitch length selection, pattern zoom and pattern adjustment etc.

4. Full servo motor drive, higher quilting accuracy.

5. Automatic trimming, infrared protection, mending sewing and thread breakage detection function.

6. Automatic oiling system, effectively lubricates the parts in head, and extends the machine lifetime.

7. International well-known brand jumbo rotary hook, reduces bobbin thread changing frequency.

8. Richpeace professional quilting design system, can design freely, edit, and simulate quilting, etc., powerful with complete functions.

Richpeace Continuous Feeding Quilting MachineRichpeace Continuous Feeding Quilting Machine


Configuration

① Control System

15inch touch screen, ARM control board, Linux system core, easy operation, stable working status.

富怡连续送料龙门式绗缝机

② Richpeace High Speed Sewing Head

DLC coating, increased lifespan of high-speed moving parts.

富怡连续送料龙门式绗缝机

③ Thread Trimming Device

No thread ends on surface, reduce the bobbin thread loss.

富怡连续送料龙门式绗缝机

④ Motor

Full servo motor drive, higher quilting accuracy.

富怡连续送料龙门式绗缝机

⑤ Bearing

Lower friction, longer lifespan.

富怡连续送料龙门式绗缝机

⑥ Rotary Hook

Original imported large rotary hook.

富怡连续送料龙门式绗缝机

⑦ Drag chain structure

Robust and durable, long life.

富怡连续送料龙门式绗缝机

⑧ Automatic Cutting Box — Option

Standard cross cutting device, optional vertical cutting device.

富怡连续送料龙门式绗缝机

⑨ Support Belt System — Option

Ensure material not sinking during quilting process, higher sewing accuracy.

富怡连续送料龙门式绗缝机



Product Parameters
Model

RPQP-NM-CSF-2300×2500-SDM-LS50-VR2-SL-3P380

RPQP-NM-CSF-2600×2800-SDM-LS50-VR2-SL-3P380

RPQP-NM-CSF-3200×3200-SDM-LS50-VR2-SL-3P380

Size

2300mm×2500mm

2600mm×2800mm

3200mm×3200mm

Speed 3000rpm
Power Supply 380V, 50Hz
Power 4.0KW
Installation Area

11400mm×5500mm×1700mm

11700mm×5900mm×1700mm

12100mm×6500mm×1700mm
