Richpeace Automatic Perforation and Sewing Machine (Multi-puncher + rotary sewing)

    RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220

    RPCE-L-P+S-2-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220

    RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220

    RPCE-L-P+S-2-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220

  • Speed800 holes/min.
  • VoltageSingle Phase 220V/Three Phase 380V

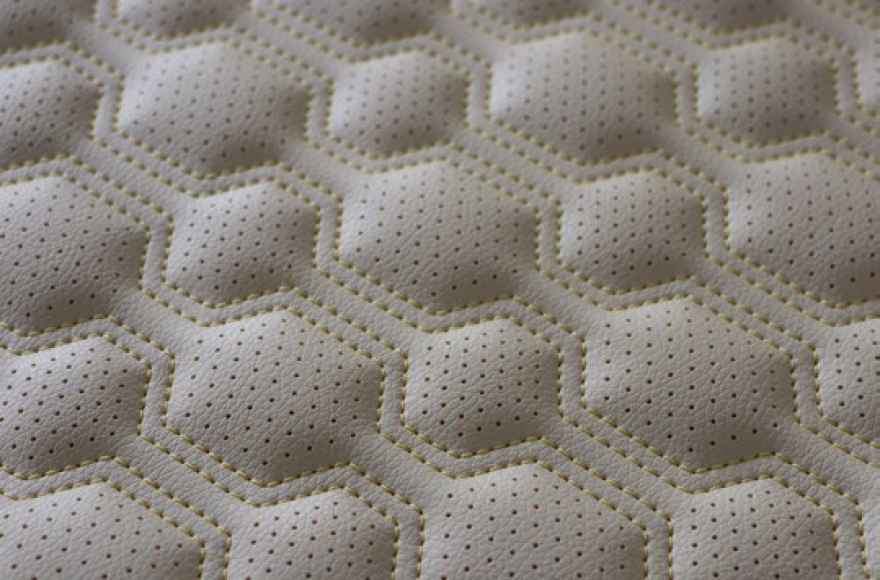

Applied for car seat, airplane seat, automobile interior, upholstery, sneakers, leather shoes, leather clothes and some other fields.
Product Video
Product Introduction

1. Integrated perforation and sewing in one machine, standard perforation, beautiful stitches.

2. Richpeace Model III Sewing Control System, ARM core + LINUX system.

3. HD industry panel, easy operation.

4. New integrated sewing head, compact and elegant design, with built-in lighting system for easy maintenance and adjustment.

5. Sewing head can rotate arbitrarily, avoiding difference between forward and reverse stitches, high efficiency and better performance; Pneumatic lifting sewing head within stroke of 50mm, easy to change frame and conducive for jump sewing.

6. 2-fold leather rotary hook ensures perfect stitching and product quality.

7. DLC treated needle bar and rotary hook shaft are more wearresistance and can satisfy high-speed running with less oil or no oil.

8. Supported automatic thread-trimming, thread-breakage detection, bobbin-thread counting.

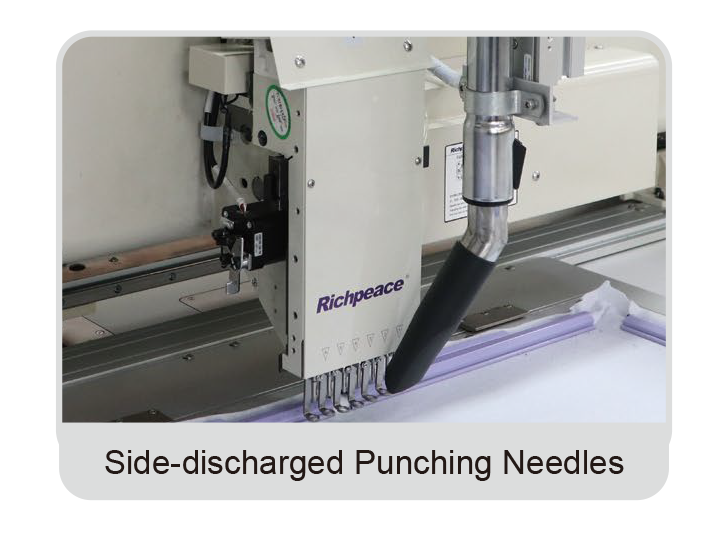

9. Perforation head: exclusive punching head and sidedischarged punching needle bar mechanism, effectively avoid scraps blocking and ensure it free falling.

10. 6 specs of punching tools equipped on each head, punchers are supported: 0.8mm-5mm. Cost-effective, suitable for mass production.

11. Powerful industrial vacuum cleaner, smooth and clean.

12. Optional Richpeace Auto-Sew CAD, any designs can be made, simple and easy to learn.

Configuration

202311070001-2_07202311070001-2_08202311070001-2_09202311070001-2_12202311070001-2_13202311070001-2_14

Product Parameters
Model

RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220

RPCE-L-P+S-2-900×600-B-P6+IS2-VR2-AO,LH50,RH360-1P220

RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220

RPCE-L-P+S-2-1200×800-B-P6+IS2-VR2-AO,LH50,RH360-1P220

Size

900mm×600mm

900mm×600mm

1200mm×800mm

1200mm×800mm

Speed 800 holes/min.
Power Supply Single Phase 220V/Three Phase 380V
Installation Area

4050×2170×1750 (mm)

5250×2170×1750 (mm)

4050×2170×1750 (mm)

4650×2570×1750 (mm)
