RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-LH50,AO-1P220
RPCE-L-P+S-2-900×600-B-P6+IS2-VR2-LH50,AO-1P220
RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-LH50,AO-1P220
RPCE-L-P+S-2-1200×800-B-P6+IS2-VR2-LH50,AO-1P220
1. Integrated perforation and sewing in one machine, standard punching, beautiful stitches.

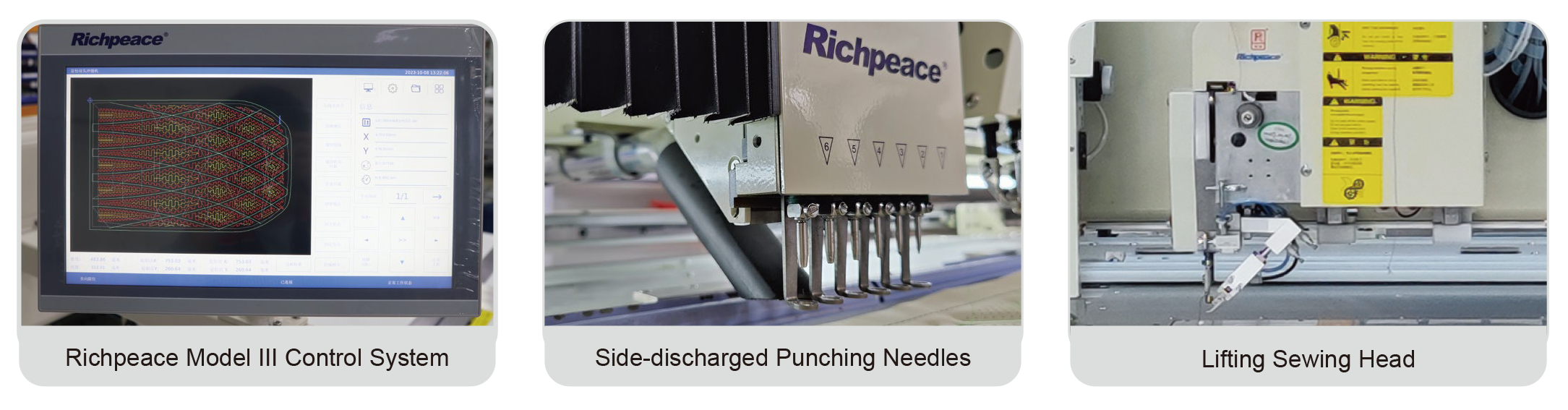

2. Richpeace Model III Sewing Control System, ARM core + LINUX system.
3. HD industry panel, easy operation.
4. Richpeace independently developed professional leather sewing head, enables more beautiful and stable stitching on leather sewing.
5. Sewing head adopts the lifting structural design with a lift stroke of 50mm, which facilitates the replacement of frames and is conducive to cross-step sewing.
6. 2-fold leather rotary hook ensures perfect stitching and product quality.
7. DLC treated needle bar and rotary hook shaft are more wearresistance and can satisfy high-speed running with less oil or no oil.
8. Functioned with automatic thread-trimming, thread-breakage detection, bobbin-thread counting.
9. Perforation head: exclusive punching head and sidedischarged punching needle bar mechanism, effectively avoid scraps blocking and ensure it free falling.
10. 6 specs of punching tools equipped on each head, puncher sizes are supported: 0.8mm-5mm. Cost-effective, suitable for mass production.

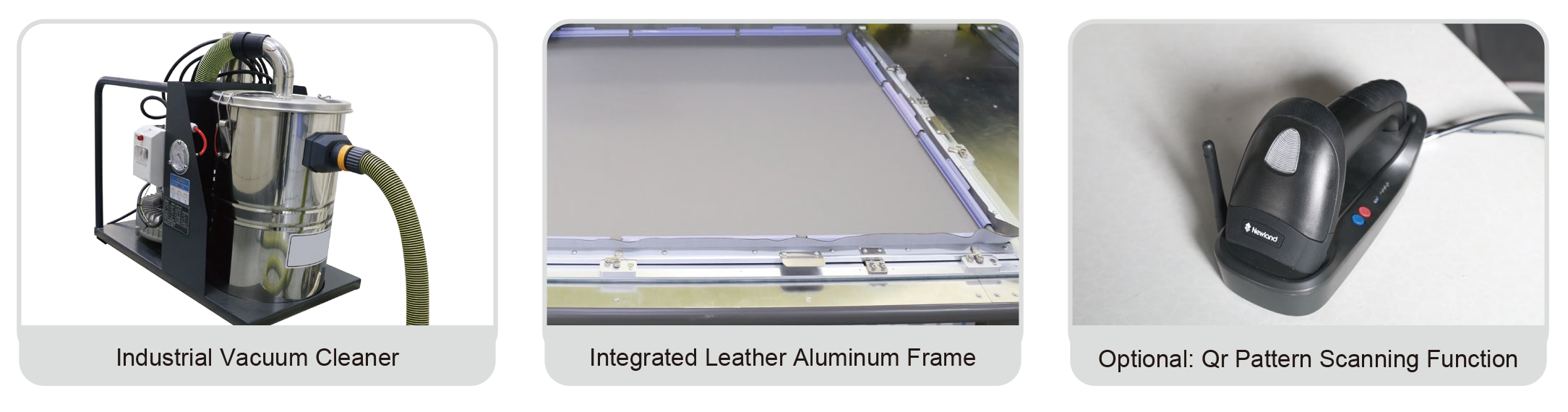

11. Powerful industrial vacuum cleaner, smooth and clean.12. Optional Richpeace Auto-Sew CAD, any designs can be made, simple and easy to learn.
Model | RPCE-L-P+S-1-900×600-B-P6+IS2-VR2-LH50,AO-1P220 RPCE-L-P+S-2-900×600-B-P6+IS2-VR2-LH50,AO-1P220 RPCE-L-P+S-1-1200×800-B-P6+IS2-VR2-LH50,AO-1P220 RPCE-L-P+S-2-1200×800-B-P6+IS2-VR2-LH50,AO-1P220 |
Size | 900mm×600mm 900mm×600mm 1200mm×800mm 1200mm×800mm |
Speed | 800-1200 stitches/min. 800 holes/min. |
Power | Single Phase 220V / Three Phase 380V |
Installation Area | 3500mm×2120mm×1470mm 4120mm×2520mm×1470mm 4764mm×2120mm×1470mm 5664mm×2520mm×1470mm |
