RPQE-NM-SFE-424-305×3105-B-4ND(135)-VR2-3P380
RPQE-NM-SFE-418-305×2590.8-B-4ND(152.4)-VR2-3P380
RPQE-NM-SFE-233-305×3251.2-B-4”2ND(101.6)-VR2-3P380
RPQE-NM-SFE-228-305×2743.2-B-4”2ND(101.6)-VR2-3P380
Specially designed for high-end mattress border production,multi-color quilting, embroidery and cutting, 3-in-1 automaticmachine;
Suitable for mattress border jump & tacking pattern quilting andlogo embroidering at the designated locations;
Roll-to-roll production, cut into mattress border stripsautomatically;
Automatic thread trimming, supports 2-4 color change for differentquilting and embroidery design;
Production of 6-10 mattress border strips at the same time,greatly improving output efficiency;

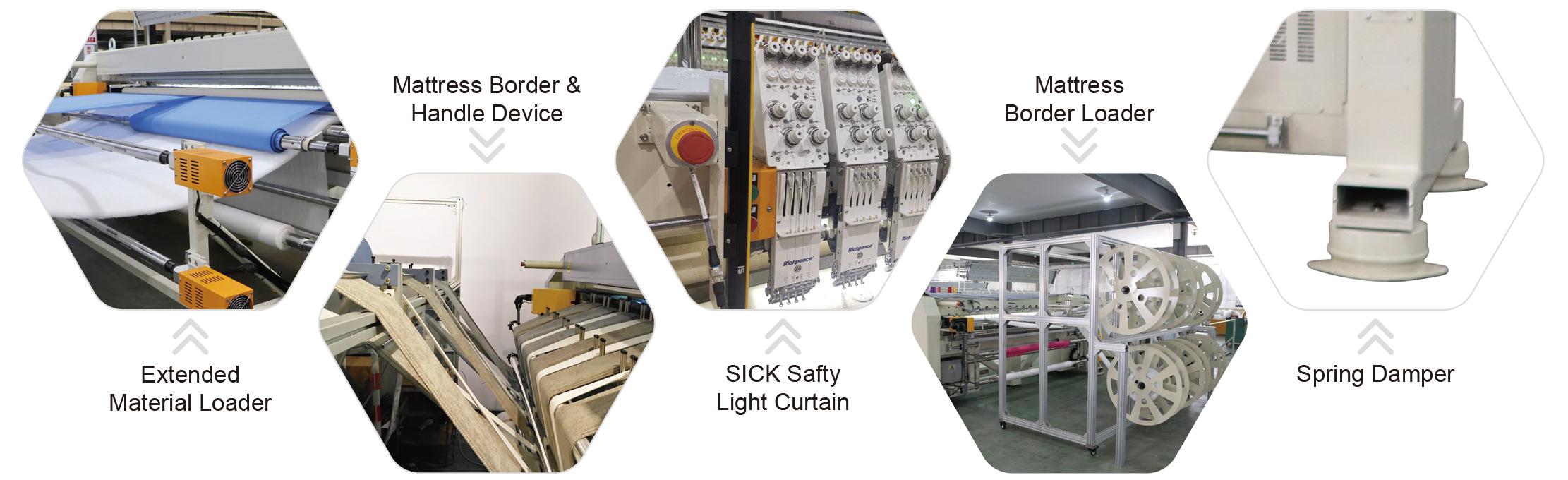

Optional automatic feeding device for multiple independentrolls of mattress border strips and mattress handlesproduction.
Optional Configuration
Model | RPQE-NM-SFE-424-305×3105-B-4ND(135)-VR2-3P380 RPQE-NM-SFE-418-305×2590.8-B-4ND(152.4)-VR2-3P380 RPQE-NM-SFE-233-305×3251.2-B-4”2ND(101.6)-VR2-3P380 RPQE-NM-SFE-228-305×2743.2-B-4”2ND(101.6)-VR2-3P380 |
Speed | 850RPM |
Power Supply | Three-Phase 220V/380V |
Power | 6.5kW |
Installation Area | 5010mm×1410mm×1915mm 4561mm×1600mm×1915mm 5220mm×1410mm×1915mm 4650mm×1410mm×1915mm |
