TIANJIN RICHPEACE AI CO., LIMITED

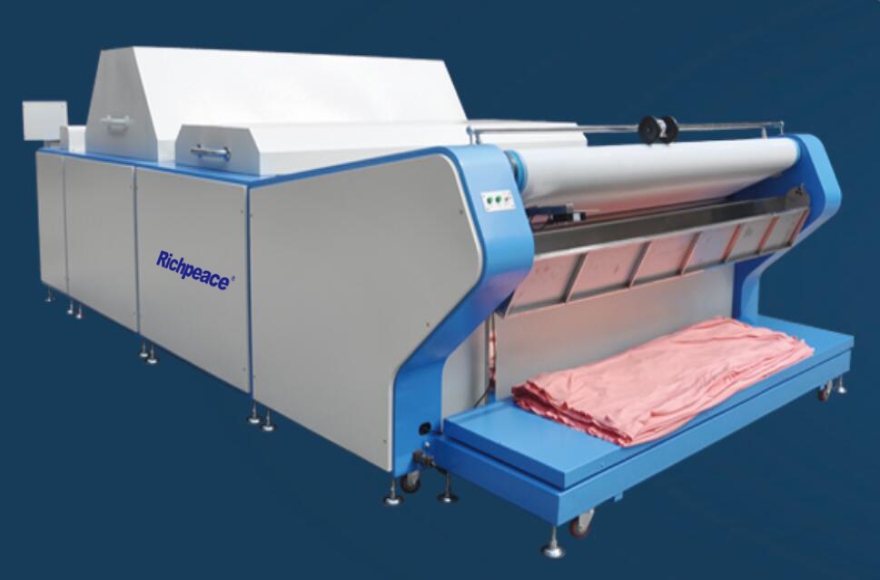

Fabric shrinking and forming Machine(With automatic edge alignment function)

    RP-4800-ED-H

  • Power9kw
  • VoltageAC380V 50HZ\60HZ
Knit and woven, a variety of general fabric.
Product Video
Product Introduction

1. Automatic edge alignment function, Heating area and cooling area use two independent mesh belts to increase the service life of the mesh belt.

2. Fully sealed unique design steam cover: no leakage of steam,reduce the steam consumption (save about 40% steam consumption than other type product), ensure no dripping water.

3. The steam cover is made of three layers of stainless steel, good heat preservation and thermal insulation effect.

4. Drying is mainly by steam heating,electric heating is auxiliary. Not only for save energy but also meet the temperature requirements of different fabric.

5. Electronic eye monitor releasing fabric, make sure fabric is in the tension-free state.

6. Adopt strong cooling device, stepless frequency speed regulation, quickly cooling fabric, stabilize fabric size.

7. Equipped with original imported electrical appliances, stable preformance, machine is durable.

8. Electronic eye automatically adjusts the mesh belt no need to worry about mesh belt running off, automatically stop working in case of failure.


Product Parameters
Model

RP-4800-ED-H

Size

5070*2610*1650mm

Power Supply AC380V 50HZ\60HZ
Power 9kw
