TIANJIN RICHPEACE AI CO., LIMITED

Compression Packaging Machine-II

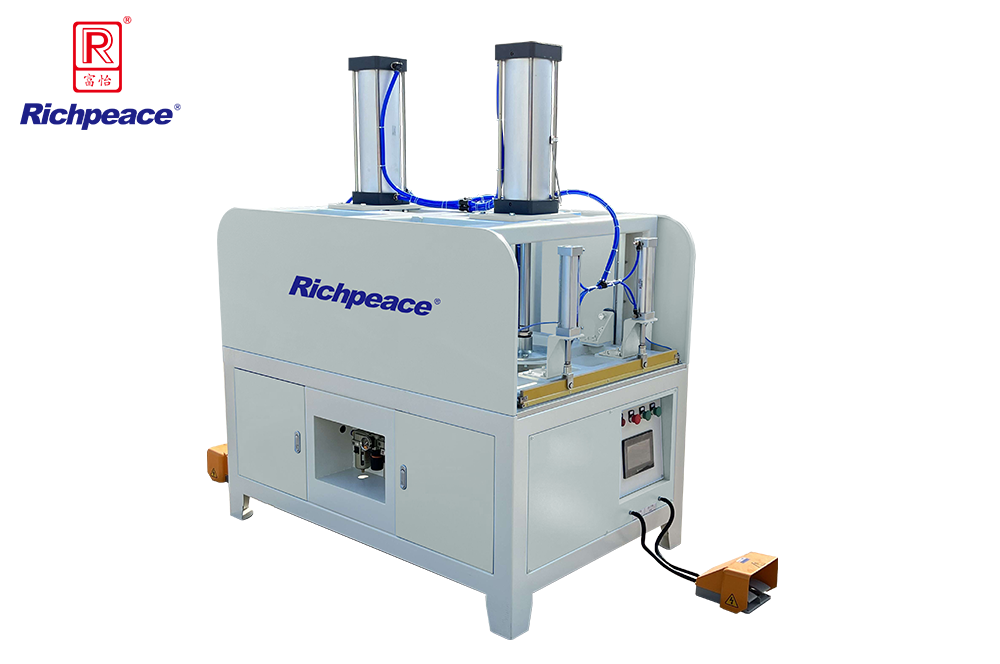

    RPAP-P-F-2-880×10-HM-US-AE-1P220 (Double Cylinders, Double Operation)

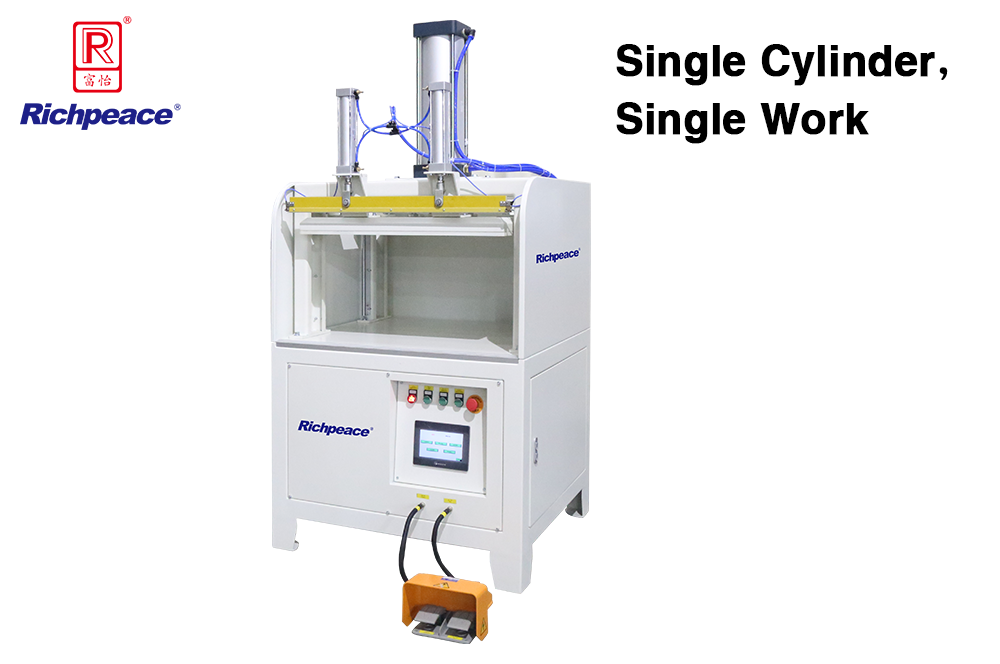

    RPAP-P-F-1-780×10-HM-US-AE-1P220 (Single Cylinder, Single Work)

  • Speed10-14 pcs/min. (Double Cylinders, Double Operation) 6-8 pcs/min. (Single Cylinder, Single Work)
  • Power2kW (Double Cylinders, Double Operation)
  • VoltageAC220V 50Hz
Suitable for compressed packing of pillows, cushions, bedding, plush toys and other products.
Product Video
Product Introduction

1. Optional two models: Double cylinders for double sealing and single cylinder for single sealing. The double-cylinder design increases the compression pressure and area. Double sealing design, meets user's requirement of not only single compression for single product, but also double operation for two products, highly improved the work efficiency.

2. Compression stroke is adjustable to adapt to the packaging of different products and improve work efficiency.

3. Highly automated control, reduced the influence of human factors on the sealing effect.

4. Wide range application of packaging materials, POP, OPP, PE, APP, etc .

5. High sealing precision: the electronic control program can ensure the consistency of the sealing temperature, the packaged products are smooth and beautiful, and saving the packing space.

6. Plastic spraying inside and outside of the machine, not only beautiful, but also increases the service life of the machine.


Richpeace Automatic Compression Packaging Machine

Product Parameters
Model

RPAP-P-F-2-880×10-HM-US-AE-1P220 (Double Cylinders, Double Operation)

RPAP-P-F-1-780×10-HM-US-AE-1P220 (Single Cylinder, Single Work)

Size

1500×880×380mm (Double Cylinders, Double Operation)

800×780×380mm (Single Cylinder, Single Work)

Speed 10-14 pcs/min. (Double Cylinders, Double Operation) 6-8 pcs/min. (Single Cylinder, Single Work)
Power Supply AC220V 50Hz
Power 2kW (Double Cylinders, Double Operation)
Installation Area

1700mm×1100mm×1860mm (Double Cylinders, Double Operation)

890mm×990mm×1860mm (Single Cylinder, Single Work)
