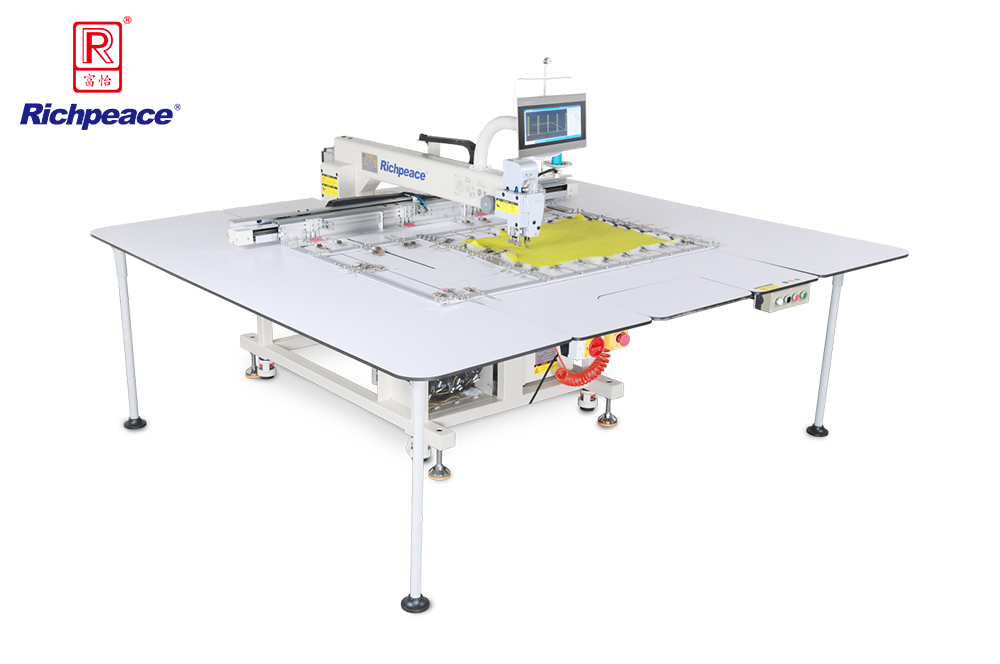

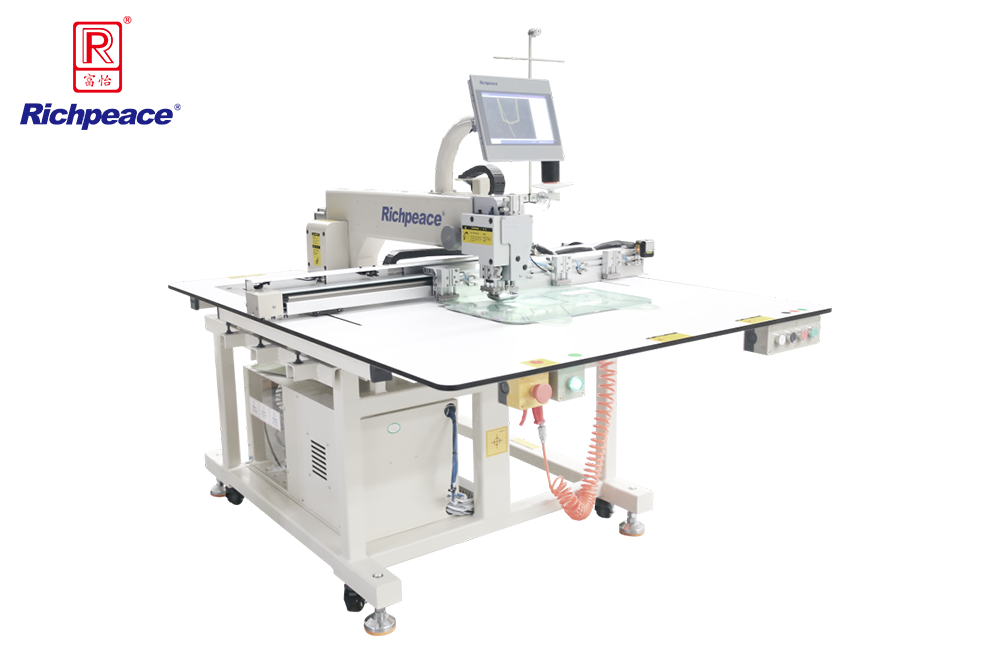

RPAS-LM-C-1-1300×900-A-IS1-VR1-1P220
RPAS-LM-C-1-1200×800-A-IS1-VR1-1P220
RPAS-LM-C-1-800×450-A-IS1-VR1-1P220
1. Richpeace Model III computer control system, friendly human-machine interface, flexible touch control, and large storage capacity, ensure high precision operation of the machine.
2. X, Y movements are driven with high precision ball screws and linear guide structure, higher precision, better stability
3. Automatic lubrication to machine head and rotary hook case, prolongs machine service lifespan.
4. Sewing head is equipped with anti-down leaking technology to ensure no down leakage during the sewing process for down garments.
5. Lifted elastic presser foot, with adjustable height automatically according to different material thickness, ensures the stitches more accurate and more beautiful.
6. X direction template base is pneumatic clamping structure, convenient to install and remove template.
7. Folding working table, elegant construction, convenient for garment factory to place the machine.
8. Bar code recognition function, fast to read the patterns.
9. Rotary hooks, bearings, belts, guide rails, pneumatic parts, are of international well-known brands, longer service time.
10. Optional Richpeace AutoSew CAD system , freely import various of template files, no format conversion required.
Model | RPAS-LM-C-1-1300×900-A-IS1-VR1-1P220 RPAS-LM-C-1-1200×800-A-IS1-VR1-1P220 RPAS-LM-C-1-800×450-A-IS1-VR1-1P220 |
Size | 1300mm×900mm 1200mm×800mm 800mm×450mm |
Speed | 3500rpm |
Power Supply | (Single phase) 220V |
Installation Area | 2400mm×2600mm×1500mm 2400mm×2400mm×1500mm 1200mm×1600mm×1500mm |
