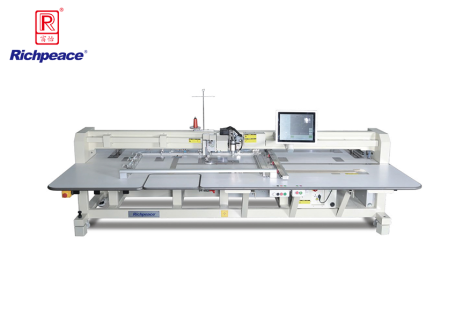

RPAS-L-R-1-900×600-A-IS2-VR2-LH50,RH360,UTC-1P220
RPAS-L-R-1-1200×800-A-IS2-VR2-LH50,RH360,UTC-1P220
1. Richpeace new type III computer control system, friendly human-machineinterface, flexible touch, and large storage capacity,to ensure wholemachine’s high-precision operation.
2. Independently driven 360° rotating head to avoid difference in quality ofpositive and reverse stitches.
3. Pneumatically lifted sewing head, within stroke of 50mm, convenientforframe changing, and conducive to step sewing and safe operation.
4. Configured leatherrotary hook and bobbin case, suitable forthick threadsewing and reduced the problem of hook-stuck and thread-twined.
5. Servo motor drive, steel belt + linear guide drive,to ensure high-qualitysewing effect.
6. DLC treated needle bar and hook shaft, more wear-resistant, can worknormally at high speed without oil or with little oil.
7. 10-Inch high-definition industrial flat panel, easy to operate.
8. Automatic pneumatic thread trimming, upperthread breakage detection,bobbin thread counting, and gauge and template in-position detection.
9. The intermittentframe movement method can be selected to ensure thesharp corner effect and calmly respond to the customer's stitch style andaccuracy requirements.
10. Needle cooling system as standard configuration to avoid poor sewingcaused by overheating of needles during thick needle sewing.
11. Standard configured bowl-shaped presserfoot avoids damage orindentation to the fabric during the sewing process.
12. The table support structure ensures the flatness and accuracy oftheproduct under high-speed operation.
13. SMC atomized lubrication to realize automatic lubricating of maintransmission components.
14. USB portfor pattern reading, large stitches capacity.
15. Optional Richpeace AutoSew CAD software, patterns can be arbitrarilydesigned, easy to learn.
Model | RPAS-L-R-1-900×600-A-IS2-VR2-LH50,RH360,UTC-1P220 RPAS-L-R-1-1200×800-A-IS2-VR2-LH50,RH360,UTC-1P220 |
Size | 900mm×600mm 1200mm×800mm |
Speed | 2500 rpm Leather sewing speed 1200 rpm |
Power Supply | Single Phase 220V/50Hz |
Power | 2.8kW |
Installation Area | 2395mm×2240mm×1700mm 2845mm×2700mm×1700mm |
