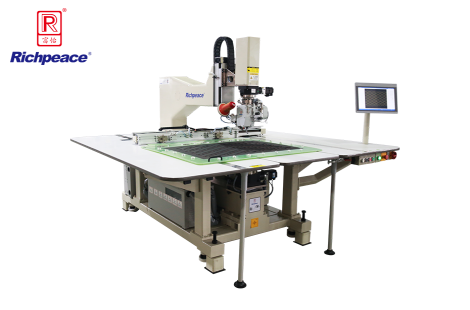

RPAS-L-R-1-900×600-A-IS2-VR2-LH50, RH, UTC-1P220
RPAS-L-R-1-1200×800-A-IS2-VR2-LH50, RH, UTC-1P220
1. New integrated sewing head, compact and elegant design, with built-in lighting system for easy maintenance and adjustment.
2. The machine head is equipped with Automatic Thread Tension (ATT) detection and ATT adjustment devices to form closed-loop control ofthread tension,real-time control, and ensure sewing stability.
3. Fully automatic round knife thread cutting method, with shorterthread ends and higher efficiency.
4. Brand-new upgradation oftriple lead-screw driving, dynamic positioning ensures stitching more accurate.
5. Richpeace Model Ⅲ Sewing Control System, ARM core + LINUX system.
6. 15-inch HD industry panel, easy operation.
7. Sewing head can rotate arbitrarily, avoiding difference between forward and reverse stitches, high efficiency and better performance.
8. Pneumatic lifting sewing head within stroke of 50mm,easy to change frame and conducive forjump sewing.
9. Gantry synchronization technology distributes frame driving power scientifically, and makes frame moving more timely and accurately.
10. Full servo driving and high-precision railtransmission ensure accurate pattern stitching.
11. DLC treated needle bar and rotary hook shaft are more wear-resistance and can satisfy high-speed running with less oil or no oil.
12. Upperthread breakage detection, bobbin thread counting, and template in position detection.
13. Equipped a lead-screw guide slide, with high positioning accuracy, low friction, high rigidity, and strong load capacity, can achieve precise positioning.
14. Table supporting ensures stitches flat and accurate under high-speed running.
15. The two side tables are designed as flip board, which reduces the space after unloading and makes transportation and handling more convenient.
16. Patterns read in USB port, large stitches storage.
17. Equipping with stainless steeltable, strong and durable.
18. Optional Richpeace Auto-Sew CAD, any designs can be made, simple and easy to learn.
Model | RPAS-L-R-1-900×600-A-IS2-VR2-LH50, RH, UTC-1P220 RPAS-L-R-1-1200×800-A-IS2-VR2-LH50, RH, UTC-1P220 |
Size | 900mm×600mm 1200mm×800mm |
Speed | 2500rpm, 800-1200rpm recommended for leather |
Power Supply | Single Phase 220V/50H |
Power | 3.8kW |
Installation Area | 2050mm×2050mm×1700mm 2845mm×2700mm×1700mm |
