Richpeace Automatic 9cm Multi-Layer Cutting Machine

    RPAC-NM-MC9-1-1800×1600-SB-MH-P-3P380

    RPAC-NM-MC9-1-1800×1800-SB-MH-P-3P380

    RPAC-NM-MC9-1-2000×1800-SB-MH-P-3P380

    RPAC-NM-MC9-1-2500×1800-SB-MH-P-3P380

    RPAC-NM-MC9-1-2000×2000-SB-MH-P-3P380

    RPAC-NM-MC9-1-2000×2200-SB-MH-P-3P380

  • Speed1-60m/min(Varied as per cutting depth and material)
  • Power16-36kW
  • VoltageThree-phase 380V AC, 50Hz
Suitable for woven fabrics, knitted fabrics, leather fabrics, non-woven fabrics, denim fabrics and flexible fabrics such as polyester and nylon.
Product Video
Product Introduction

1. There is a cutting ecosystem from Garment CAD software-CAM control system-Precision Machinery manufacturing, all with completely independent R&D intellectual property rights.

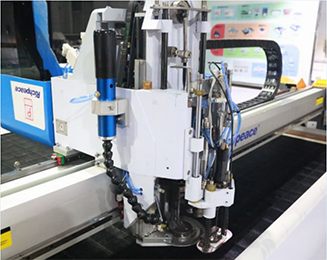

2. Cutting head is entirely aluminum casting structure, high-strength, long-life-span, light weighted and quiet. Key components are lubrication-free designed, avoiding fabric being-stained, easier daily maintenance.

3. Special coating treated to the high-frequency driving parts, enhanced durability, prolonging service cycle, and cost saving.

4. The intelligent cutter can intelligently change speed according to the cutting trajectory, automatically adjust the angle of the cutter, compensate the side stress, and ensure the consistency of cut pieces at the uttermost.

5. Double diamond automatic knife sharpening device, both sides of the blade are ground at the same time to keep consistency of blade two edges; computerized controlling the grinding times and automatically calculating the blade wear-loss, to ensure accurate cutting.

6. Real-time monitoring of cutting track, with fault alarm and remote diagnosis and troubleshooting.

7. Automatic split of long-marker to multiply window for continuously cutting job, no need for second positioning nor bed-changing clearance reserving, can cut any length of patterns.

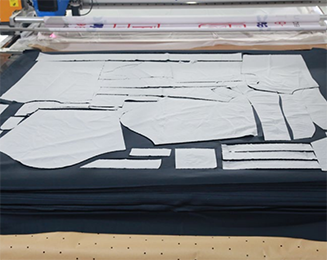

8. Conveyor belt with automatic discharging system, can intelligently identify cut pieces finished and delivers to material collection table.

9. Intelligently controlled vacuum pump, with real-time monitor system of the vacuum pressure and inverter loop-controlled, ensures sufficient and constant vacuum suction for the fabric.

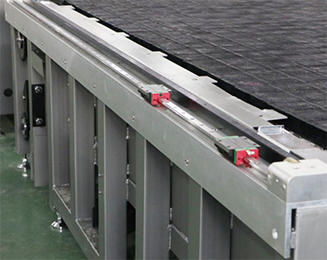

10. Machine body can be made to split-structure which is suitable for loading and transportation.

115ef653ef8b04d201a95f4dd07462


Configuations

 (Below are for reference, pls. consult with Richpeace for the final configurations)

41bc8a66266f8b3-141bc8a66266f8b3-1



Options

41bc8a66266f8b3-241bc8a66266f8b3-2

Product Parameters
Model

RPAC-NM-MC9-1-1800×1600-SB-MH-P-3P380

RPAC-NM-MC9-1-1800×1800-SB-MH-P-3P380

RPAC-NM-MC9-1-2000×1800-SB-MH-P-3P380

RPAC-NM-MC9-1-2500×1800-SB-MH-P-3P380

RPAC-NM-MC9-1-2000×2000-SB-MH-P-3P380

RPAC-NM-MC9-1-2000×2200-SB-MH-P-3P380

Size

1.8m×1.6m

1.8m×1.8m

2.0m×1.8m

2.5m×1.8m

2.0m×2.0m

2.0m×2.2m

Speed 1-60m/min(Varied as per cutting depth and material)
Power Supply Three-phase 380V AC, 50Hz
Power 16-36kW
Installation Area

5500mm×2600mm×2575mm

5500mm×2800mm×2575mm

5700mm×2800mm×2575mm

6300mm×2800mm×2575mm

5700mm×3000mm×2575mm

5700mm×3200mm×2575mm
