Richpeace Comforter Four Side Sewing and Cutting Production Line

    RPQP-NM-CSF-1-2400×2400-SDM-LS50-VR2-CR,BC,TC,SBD-3P380
  • Speed 3000r/m
  • Power15kW
  • VoltageThree phase 380V,50Hz
For comforter 4-side inseam sewing and trimming (with two layers fabrics and padding in).
Product Video

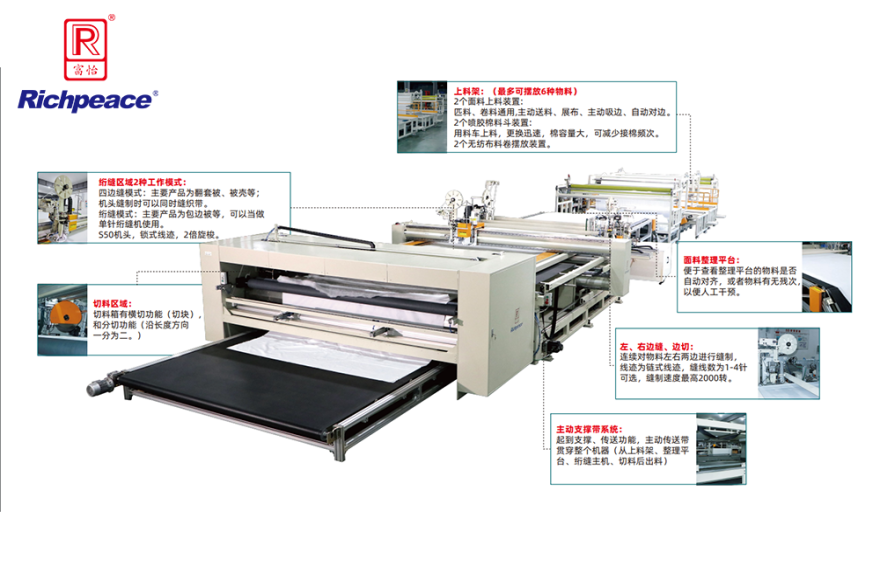

Product Introduction

1. Material Shelf: (Max. 6 layers)

2 sets upper fabric feeding devices: Universal for flat open fabric or rolling fabric. Automatic feeding, spreading, clamping, and edge alignment.

2 sets wadding loading devices: Large-volume wadding, loaded by wheeler, fast replacement, reduced the changing frequency.

2 sets non-woven fabric loading devices.

2. Sewing Area- 2 functions

4-side sewing: for comforter, bedding cover, etc; The sewing head could sew the narrow tape at same time.

Panel quilting: for edge-binding comforter, working as single needle quilting machine.

S50 sewing head, lock stitch ,2X rotary hook.

3. Cutting area

Panel Cutting, and longitudinal strip cutting in half.

4. Fabric Neating Platform

For checking the material on the platform in alignment or not, or any defect, in order for manual intervention.

5. Longitudinal Sewing and Cutting

Continuous hemming with trimming on both sides, chain-stitch (1-4 thread), max. sewing speed 2000rpm.

6. Automatic Belt Support System

The conveyor belt provides the support and transmission for the whole machine from feeding shelf to the check-up platform, Quilting, Cutting and final product.

4f3a9e64ff6095ed81f16784f22b13


Machine configuration

Schneider Servo Motor

富怡翻套被四边缝纫裁切生产线

Original Japanese SMC Pneumatic Parts

富怡翻套被四边缝纫裁切生产线

German IGUS Drag Chain and High Flexible Cable

富怡翻套被四边缝纫裁切生产线

Japan NSK Bearing

富怡翻套被四边缝纫裁切生产线

China Taiwan Hiwin Linear Guide Rail

富怡翻套被四边缝纫裁切生产线

Richpeace Third Generation Control System

富怡翻套被四边缝纫裁切生产线

Product Parameters
Model RPQP-NM-CSF-1-2400×2400-SDM-LS50-VR2-CR,BC,TC,SBD-3P380
Size

2400mm×2400mm

Speed 3000r/m
Power Supply Three phase 380V,50Hz
Power 15kW
Installation Area 25000mm×4430mm×1952mm (L×W×H)
