Release Time:2021-01-25

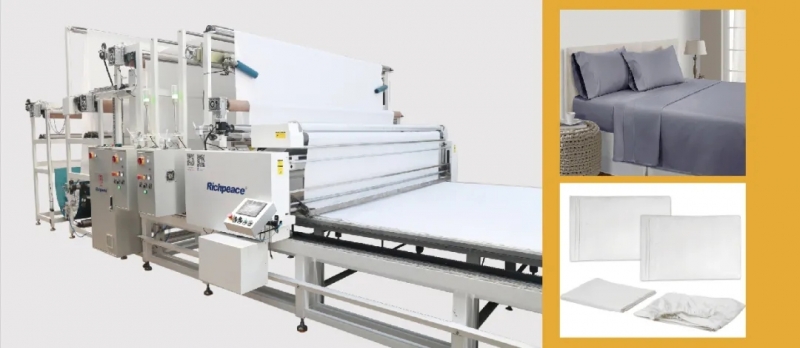

Richpeace automatic spreading machine for large fabric roll. Suitable for fabric spreading with various types of fabric roll in extra large diameter or extra heavy roll. Fabric that is compatible with cloth coils up to 1.5 meters in diameter, with a weight of less than 2 tons. It is widely used in the automatic laying process of fabrics in home textile industry.
Richpeace automatic spreading machine for large fabric roll, support for oversized rolls of fabrics, fabric that is compatible with cloth coils up to 1.5 meters in diameter, with a weight of less than 2 tons. Evenly fabric feeding force and delivery fabric, not require addition stretching force applied for the entire process. Support fabric remaining detection, when no fabric feeding in, machine stopped automatically. Feasible with either one way spreading or zigzag spreading. Electronic control system for zigzag spreading, ensure firmly pressed the edges, in order to higher the spreading accuracy.
Parameters Model:
Usable fabric width: 3M width fabric(can be customized)
Large roll feeding speed: 1.4m/s
Max spreading speed: 2 m/s
Spreading working length: Within 20 meter(based on different fabric)
Alignment accuracy: ±5mm
Spreading head accuracy:±5mm
Average overall efficiency:2000-2500m/h
Large roll fabric application: Large roll or raw fabric
Power supply: Three phase 380V, 50HZ
Air pressure: 0.6Mpa
Occupied area: Length×width×height 2800mm×4000mm×2350mm
Operation environment: Temperature0-45℃ Humidity5-95%(No condensate)
Configuration PLC: OMRON
Sensor OMRON SMC
Pneumatic components SMC(Japan)
Bearing: NSK(japan), FYH(Japan)
Cable chain: IGUS(Germany)
Timing belt: BANDO(Japan)
Linear guide rail: HIWIN
