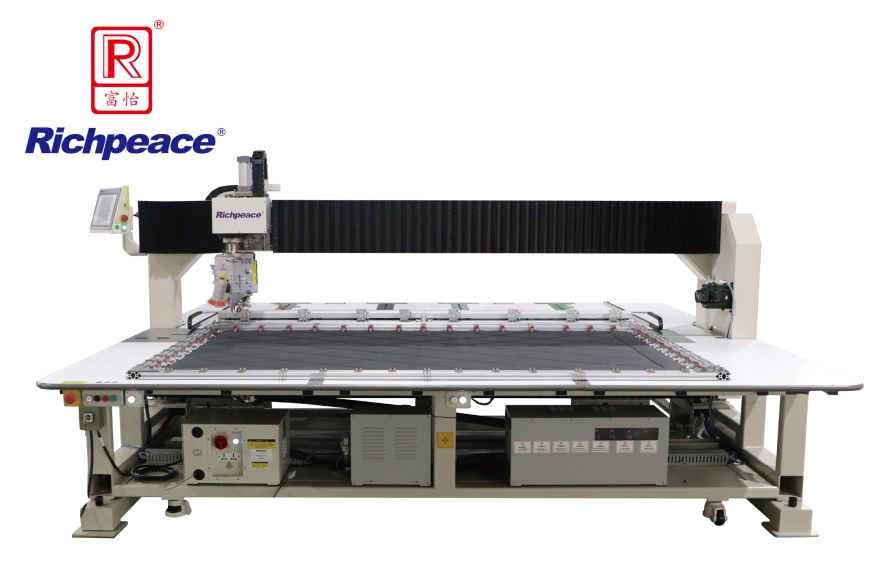

Richpeace Non-Stop Automatic Rotary-Head Leather Sewing Machine

1. Richpeace brand-new model Ⅲ computer control system, friendly HMI, flexible touch control, large storage capacity, ensure high precision operation of complete machine.

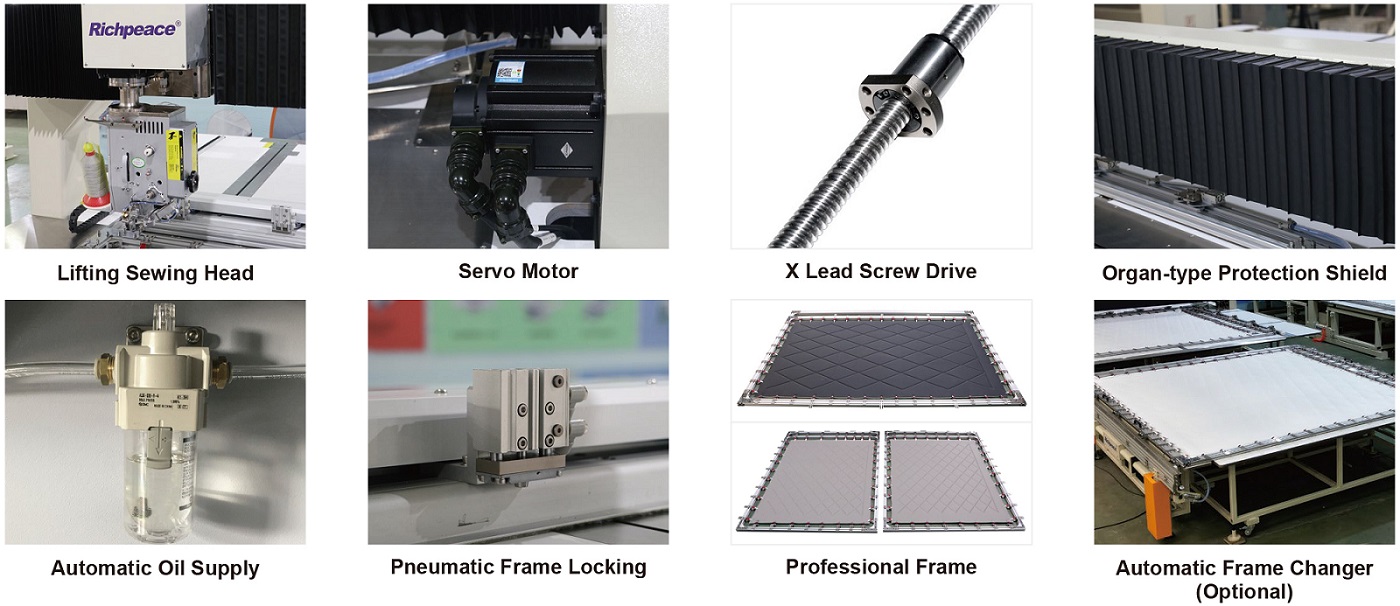

2. Vertical lifting sewing head, within lift stroke of 100mm, convenient for changing frames and conducive to step sewing; sewing thickness is within 8mm after compressed, and sewing speed is varied to different thickness.

3. Different presser foot configured for different sewing needs to achieve the desired sewing effect.

4. Table support structure ensures the flatness and accuracy of the product during machine high-speed operation.

5. Equipped 7-axis servo drive for the whole machine, ball screw transmission to X-driving and steel synchronous belt transmission to Y-driving, ensures high precision of machine sewing.

6. Two independent working area A/B shift without machine stop or joint A and B working area together being a super large sewing area.

7. Pneumatic thread cutting, stable and efficient.

8. Leather-purpose rotary hook, independently driven to needle and rotary hook, achieving automatic hook alignment and automatic position calibration.

9. DLC treated needle bar and rotary hook shaft, wear-resistant, can work normally at high speed without oil or little oil. Automatic atomizing lubrication to the head and rotary hook case.

10. Detachable machine structure, easy for shipping and loading to work floor.

11. With the function of upper thread clamping and thread-end clamping, it ensures a smooth start without forming a "nest" and produces beautiful stitches.

12. It has functions such as automatic thread trimming, upper thread breakage detection, needle-cooling, and bobbin thread counting (counting by the number of stitches to achieve bobbin capacity alarm).

13. Supporting automatic circulation of four patterns production.

14. Organ-type dust shield for upper and lower transmission to enhance protection level.

15. Optional Richpeace Auto-Sew CAD software, easy to learn, meeting individual pattern-design requirement.
