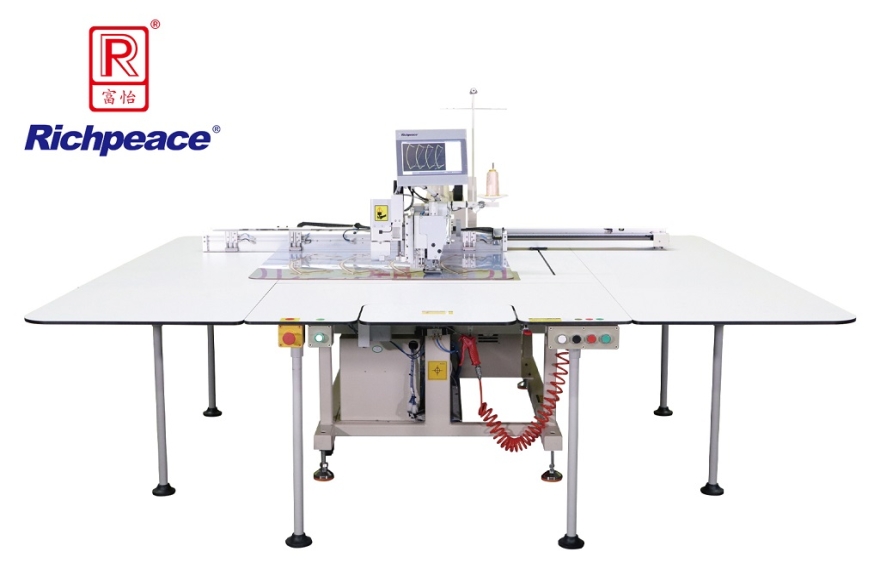

Richpeace Automatic Sewing and Cutting (Circular Knife) Machine

    RPAS-LM-C-1-800×450-A-IS1-VR1-CK-1P220

    RPAS-LM-C-1-1200×800-A-IS1-VR1-CK-1P220

    RPAS-LM-C-1-1300×900-A-IS1-VR1-CK-1P220

  • Speed3500RPM
  • Power0.6-1.2kW
  • VoltageSingle Phase 220V
Down jacket, padding jacket auto-sewing, Denim, shirt, suit, fashion, etc. Garment parts (placket, zipper, pocket, shoulder loop, sleeve cuff),auto-sewing and other thin material products that need to be sewn and cut.
Product Video
Product Introduction

1. Richpeace Model III computer control system, friendly human-machine interface, flexible touch control, and large storage capacity, ensure high precision operation of the machine.

2. Richpeace Software, Electronic control, mechanical integration production advantages, product quality and after-sales guarantee.

3. Standard configured with Circular Cutter, realized integration of sewing and cutting, with intelligent eco-friendly and high efficiency.

4. X, Y movements are driven with belt and linear guide structure, less noise, better stability.

5. Lifted elastic presser foot, with adjustable height automatically according to different material thickness, ensures the stitches more accurate and more beautiful.

6. Sewing head is equipped with anti-down leaking technology to ensure no down leakage during the sewing process for down garments.

7. Automatic lubrication to machine head and rotary hook case, prolongs machine service lifespan.

8. Equipped with full servo motor, equipment is stable and can ensure the quality of stitch.

9. Rotary hooks, bearings, belts, guide rails, pneumatic parts, are of international well-known brands, longer service time.

10. X direction template base is pneumatic clamping structure, convenient to install and remove template.

11. Folding working table, elegant construction, convenient for garment factory to place the machine.

12. Bar code recognition function, or optional RFID scanning, convenient for pattern reading.

13. Bobbin count function (counting by length or by pieces), eight patterns cycle function.

14. Optional Richpeace AutoSew CAD system , freely import various of template files, no format conversion required.

Product Parameters
Model

RPAS-LM-C-1-800×450-A-IS1-VR1-CK-1P220

RPAS-LM-C-1-1200×800-A-IS1-VR1-CK-1P220

RPAS-LM-C-1-1300×900-A-IS1-VR1-CK-1P220

Size

800mm×450mm

1200mm×800mm

1300mm×900mm

Speed 3500RPM
Power Supply Single Phase 220V
Power 0.6-1.2kW
Installation Area

1500mm×1700mm×1500mm

2600mm×2400mm×1500mm

2600mm×2600mm×1500mm
