TIANJIN RICHPEACE AI CO., LIMITED

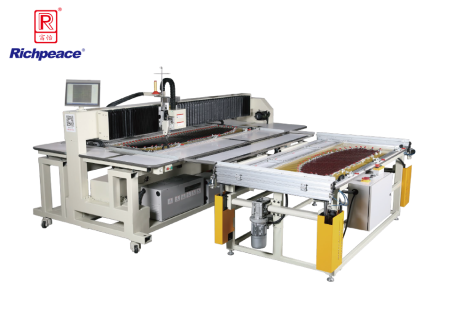

Large Size Sewing Machine for Upholstery

    RPAS-L-PQ-1-2200×1600-B-IS-VR2-LH50,AFC-3P380

    RPAS-L-PQ-1-2500×1600-B-IS-VR2-LH50,AFC-3P380

    RPAS-L-PQ-1-2800×1600-B-IS-VR2-LH50,AFC-3P380

    RPAS-L-PQ-1-2500×2600-B-IS-VR2-LH50,AFC-3P380

  • Speed2500rpm
  • Power5.5kW
  • Voltage3 phase 380V
Suitable for large format leather and fabric upholstery sewing.
Product Video
Product Introduction

1. Lifting head, lifting stoke in 50mm, and the sewing thickness is less than 8mm in the compressed state.

2. 5-axis servo + lead screw ensures ultra-large-format sewing accuracy and high-speed sharp corner effect.

3. The X and Y directions are driven by ball screws, with higher precision and more accurate positioning.

4. The needle and the hook are independently driven to realize automatic hook alignment and automatic position correction.

5. Needle bar and rotary hook main shaft treated with DLC diamond-like coating are wear-resistant and can work normally at high speed without oil or with little oil.

6. Split machine frame design, convenient for transportation and entering into the plant.

7. With automatic thread trimming, upper thread breakage detection, bobbin thread counting, and upper thread clamping functions.

8. Matching with Richpeace AutoSew CAD, simple and easy to learn, to meet customer's personalized pattern customization needs.


Large Size Sewing Machine for UpholsteryLarge Size Sewing Machine for Upholstery


Product Parameters
Model

RPAS-L-PQ-1-2200×1600-B-IS-VR2-LH50,AFC-3P380

RPAS-L-PQ-1-2500×1600-B-IS-VR2-LH50,AFC-3P380

RPAS-L-PQ-1-2800×1600-B-IS-VR2-LH50,AFC-3P380

RPAS-L-PQ-1-2500×2600-B-IS-VR2-LH50,AFC-3P380

Size

2200mm×1600mm

2500mm×1600mm

2800mm×1600mm

2500mm×2600mm

Speed 2500rpm
Power Supply 3 phase 380V
Power 5.5kW
Installation Area

3880mm×3580×1700mm

3950mm×3880×1800mm

4305mm×3950×1800mm

5930mm×4000×1800mm
