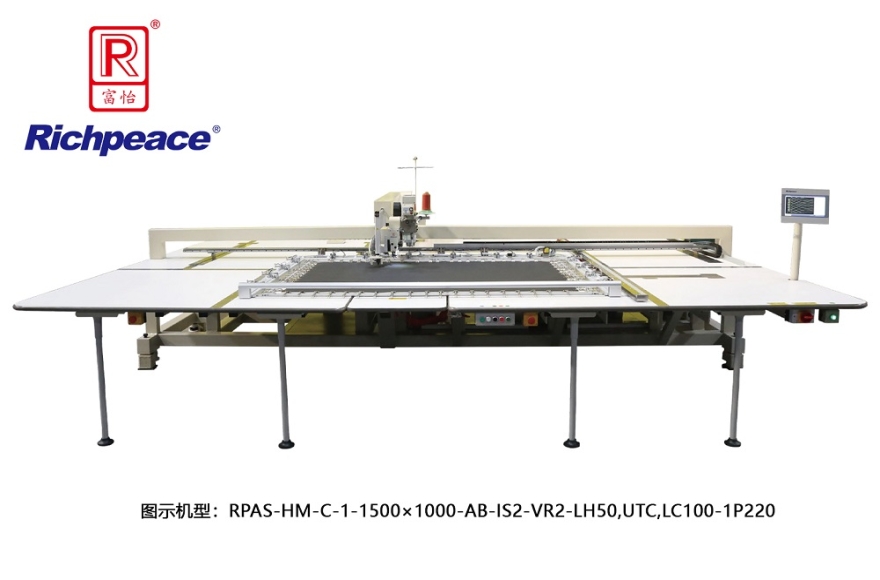

RPAS-HM-C-1-1200×1000-AB-IS2-VR2-LH50,UTC-1P220
RPAS-HM-C-1-1500×1000-AB-IS2-VR2-LH50,UTC-1P220
RPAS-HM-C-1-1500×1100-AB-IS2-VR2-LH50,UTC-1P220
RPAS-HM-C-1-1600×1200-AB-IS2-VR2-LH50,UTC-1P220

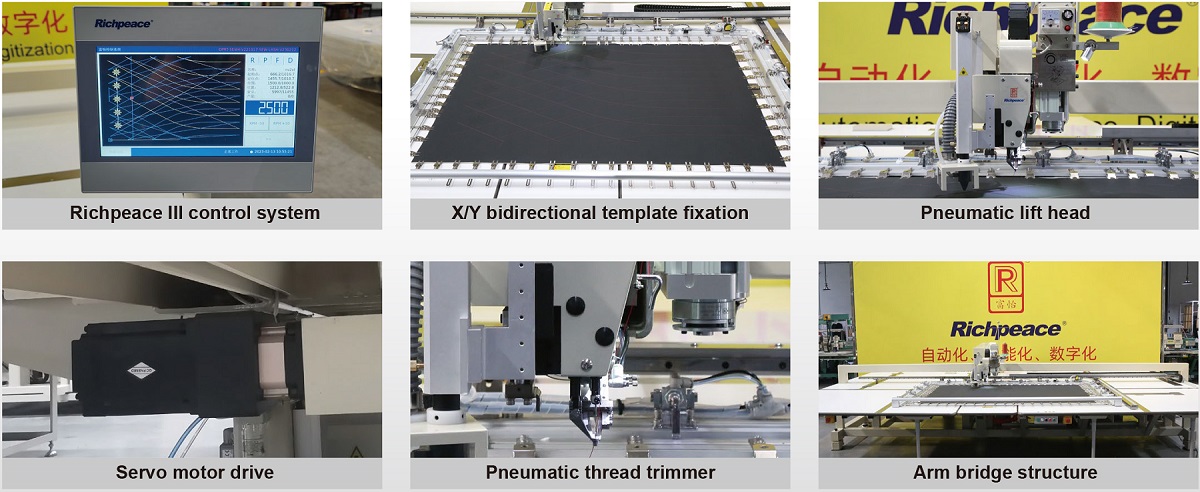

1. Richpeace model III computer control system, friend HMI, flexible touch control and large storage capacity to ensure the highprecision operation of the whole machine.
2. Pneumatic lifting sewing head, lifting stroke: 50mm, convenient to change frames, conducive to step sewing, and higher equipment safety.
3. Servo motor drive, wire belt + linear guide rail drive, to ensure high-quality sewing effect.
4. DLC treated needle bar and rotary hook shaft are more wearresistance and can satisfy high-speed running with less oil or no oil.
5. Pneumatic thread trimming, Upper thread breakage detection, bobbin thread counting, and template in place detection.
6. 10 Inches HD industrial display panel, easy to operate.
7. Arm-bridge structure ensured machine running more stable, and sewing more accurately.
8. X/Y bidirectional template fixing ensures precise sewing of superwidth patterns.
9. Intermittent frame-moving ensures the sharp corner effect, and easily meets the requirement of stitch style and sewing precision.
10. Standard configured with professional 2-fold roatry hook and bobbin case, for heavy-weight material sewing.
11. SMC automatic atomized lubricating to the main transmission components.
12. Optional Richpeace AutoSew CAD software, template cutting file and sewing file can be generated at the same time, accurate-matching, convenient and fast.
13. Optional stainless steel table, high wear-resistance and longer service life.
Model | RPAS-HM-C-1-1200×1000-AB-IS2-VR2-LH50,UTC-1P220 RPAS-HM-C-1-1500×1000-AB-IS2-VR2-LH50,UTC-1P220 RPAS-HM-C-1-1500×1100-AB-IS2-VR2-LH50,UTC-1P220 RPAS-HM-C-1-1600×1200-AB-IS2-VR2-LH50,UTC-1P220 |
Size | 1200mm×1000mm 1500mm×1000mm 1500mm×1100mm 1600mm×1200mm |
Installation Area | 3070mm×2715mm×1600mm 4630mm×3445mm×1600mm 4630mm×3645mm×1600mm 4830mm×3845mm×1600mm |
